High contrast
Excellent Cooling

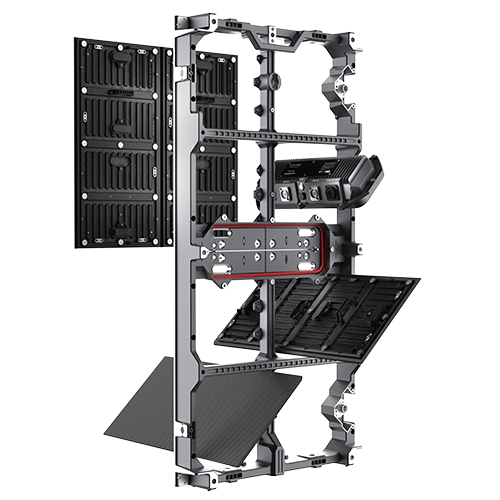

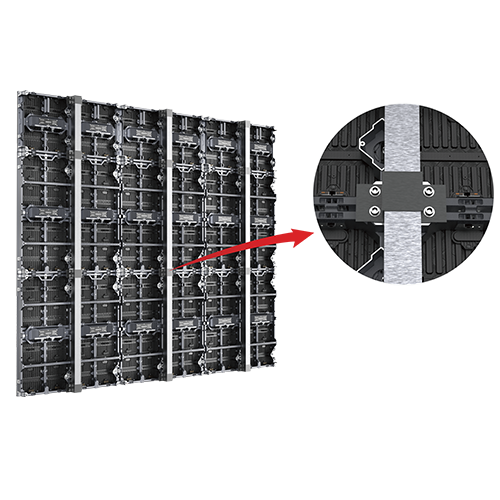

Modular
IP65
Creative application

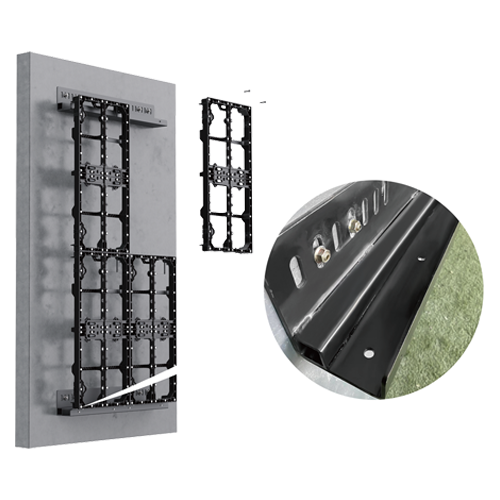

Wallmount
3840Hz&14bits
Quatro uses small & bright LEDs that help with contrast, more importantly, long louvers on mask that shade LEDs from environmental light especially sunlight mainly contribute to contrast.
We do long louvers onto 2.9, 3.9 and 4.8mm pitches, further more,nanotechnology & sophisticated work are used to perfectly fix mask onto module, which brings a consistent look on panel.

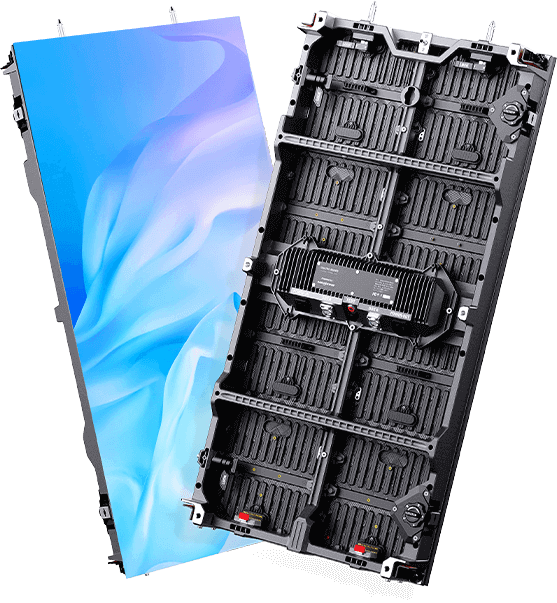

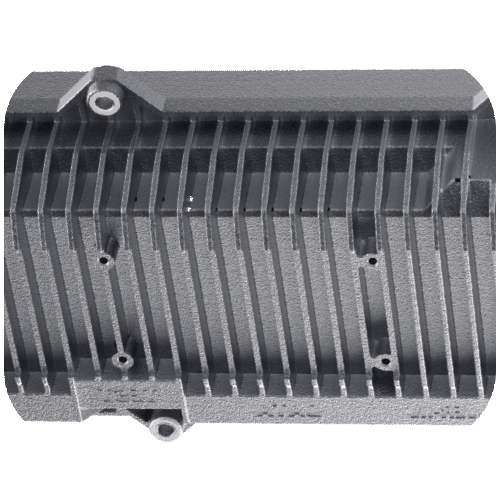

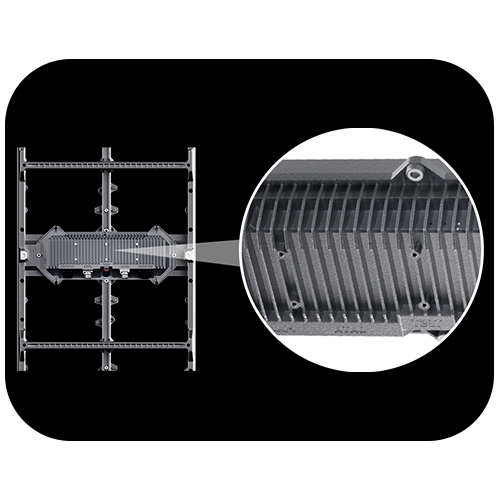

The themal property of the Spine (the house is comprised of aluminum enclosure with large cooling area & a whole chassis) rapidly dissipates heat, reducing power consumption and improving component operations. Quatro panels will not discolour on full white even under extreme conditions.

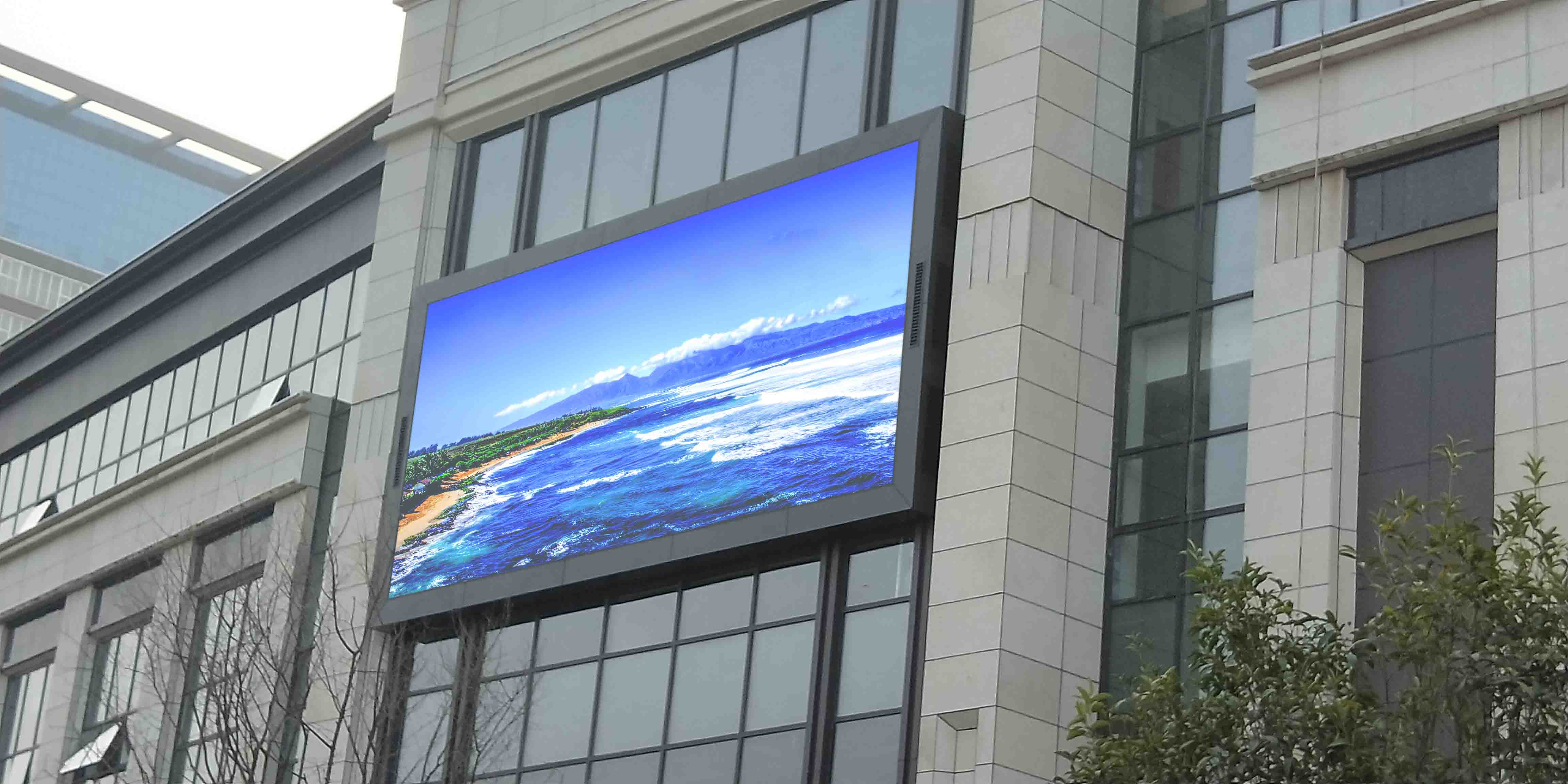

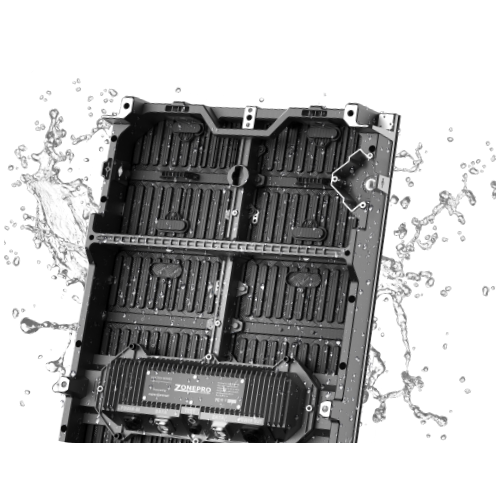

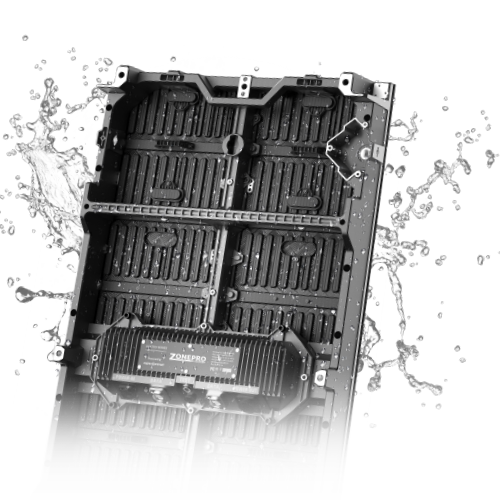

Rated IP65, front & back, Quatro repels the harshest of wet conditions.

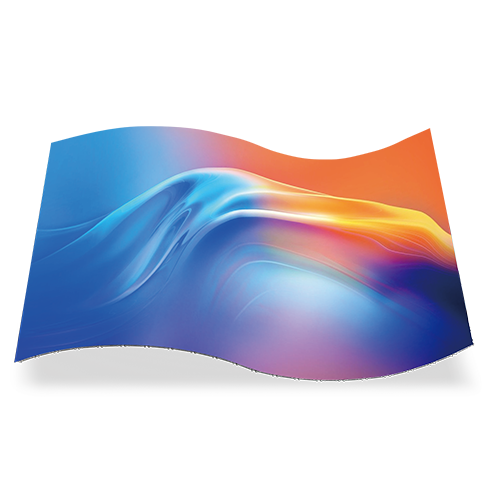

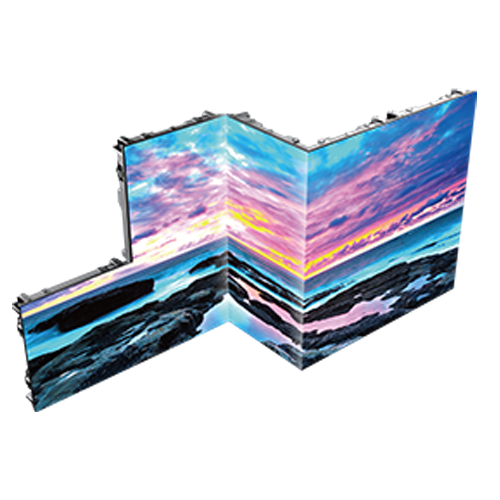

Quatro allows you to realize many creative solutions.In addition to standard designs, Quatro panels can curve,be ceiling mounted, at right angles, let your imagination be the limitation.
Pixel Pitch(mm) | QT2.6 | QT2.9 | QT3.9 | QT4.8 |
LED Configuration | SMD1415 | SMD1415 | SMD1415 | SMD1921 |
Pixel Density(pixels/㎡) | 147,456 | 112,896 | 65,536 | 43,264 |
Brightness(cd/㎡) | 4,500 | 5,500 | 5,500 | 6,500 |
Contrast | 4,000 : 1 | 5,000 : 1 | 6,000 : 1 | 8,000 : 1 |
Module Size(W x H mm) | 250x250 | 250x500 | 250x500 | 250x500 |
Module Resolution(pixels) | 96x96 | 84x168 | 64x128 | 52x104 |

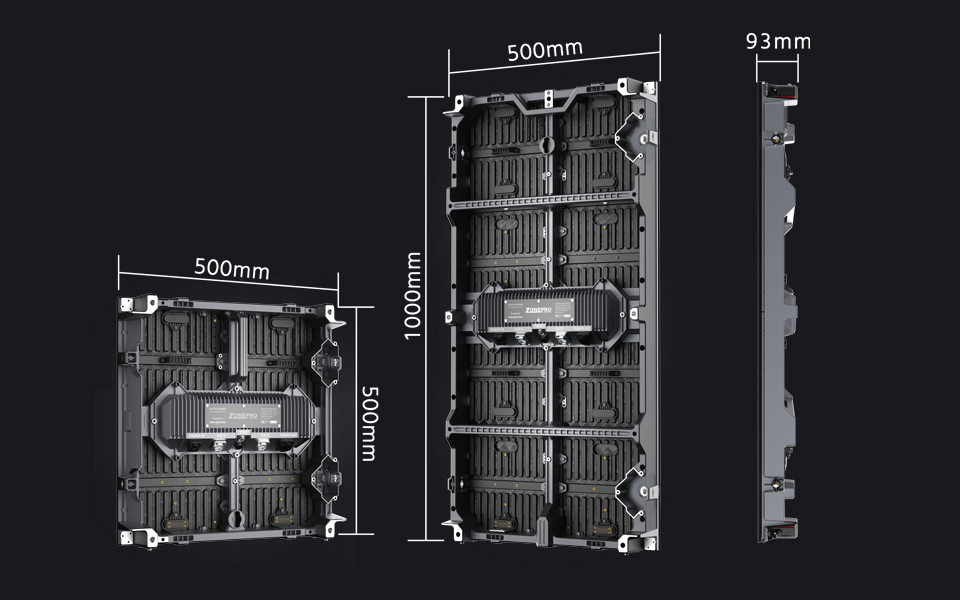

Panel Size(W x H mm) | 500x500 | 500x1000 | 500x1000 | 500x1000 |
Panel Resolution(pixels) | 192x192 | 168x336 | 128x256 | 104x208 |
Panel Weight(kg/pc) | 8.8kg | 13.8kg | 13.8kg | 13.8kg |
Cabinet Materials | Diecast Aluminum | |||
Power Consumption(Max/Avg) W/㎡ | 800/250 | 800/250 | 800/250 | 800/250 |
Refresh Rate | 3840Hz | |||
Gray Scale | ≤14 bits | ≤14 bits | ≤14 bits | ≤14 bits |
Ingress Progress | IP65 | IP65 | IP65 | IP65 |
Scan Ratio | 1/16 | 1/14 | 1/8 | 1/8 |
