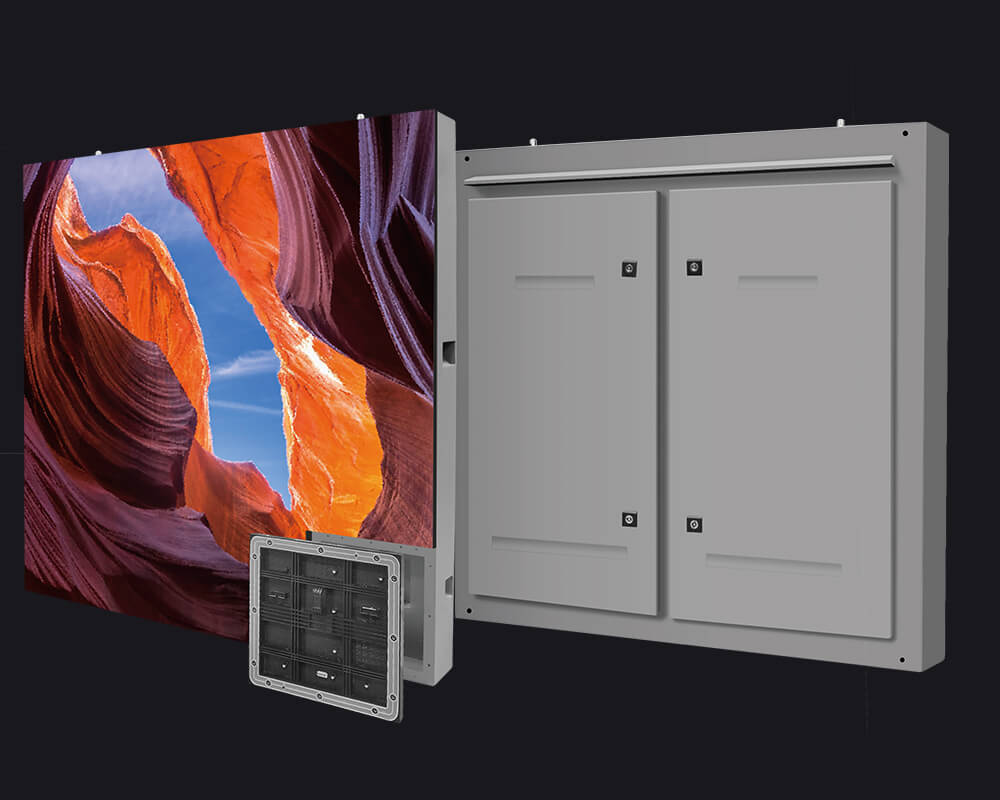

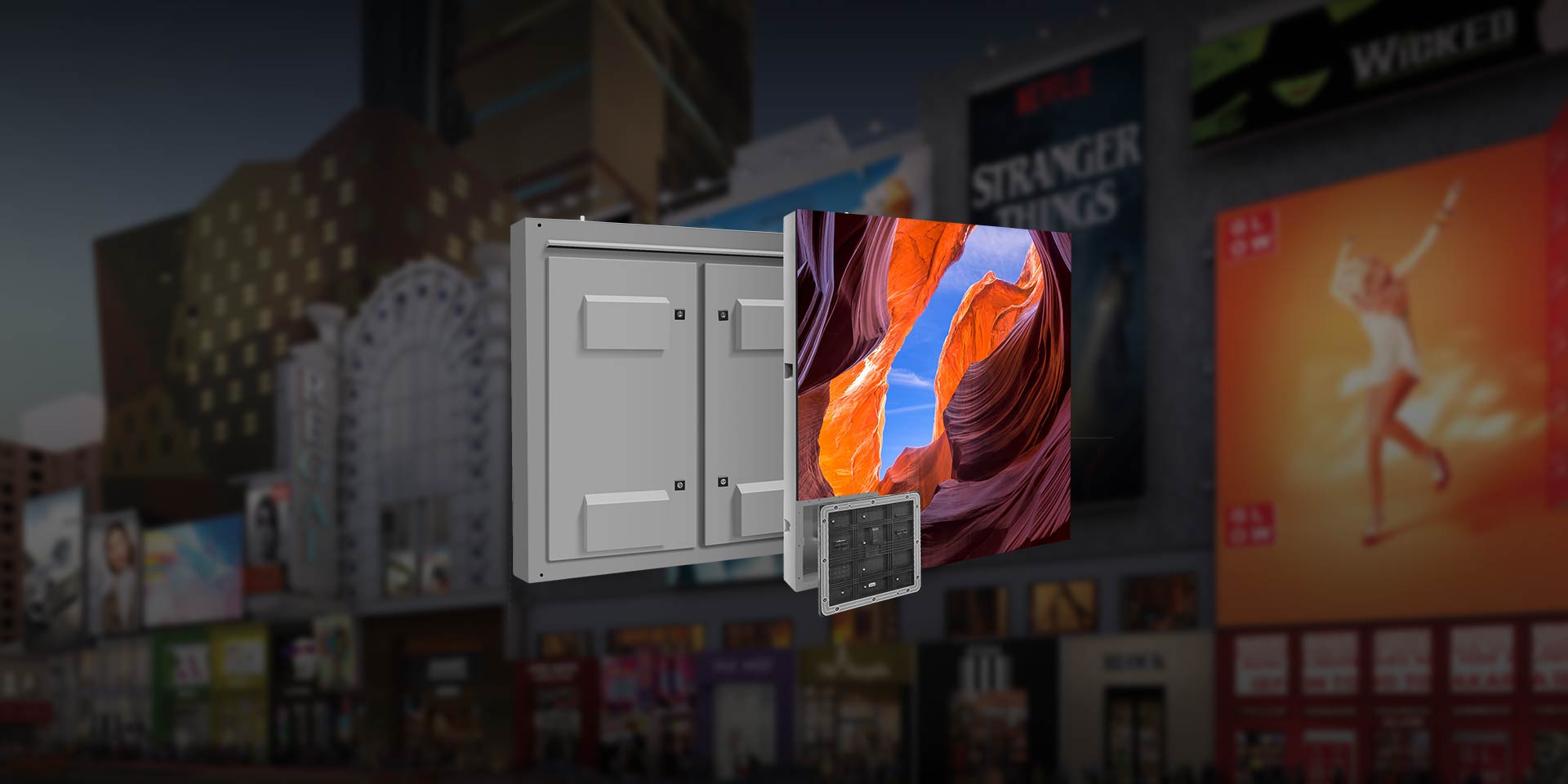

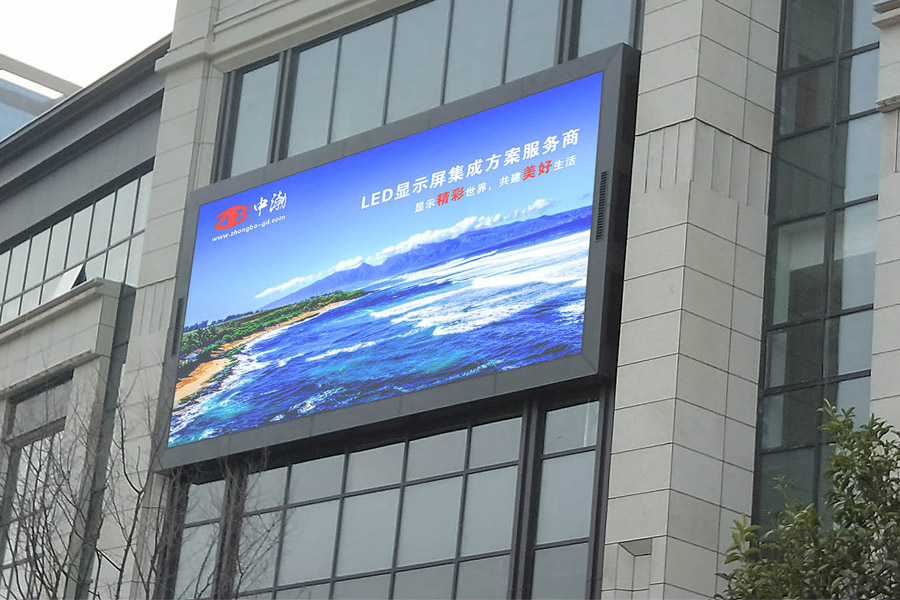

ASO is an outdoor media panel that allows you to realized many creative applications,such as right-angled,curved and other irregular shapes LED screen.
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team

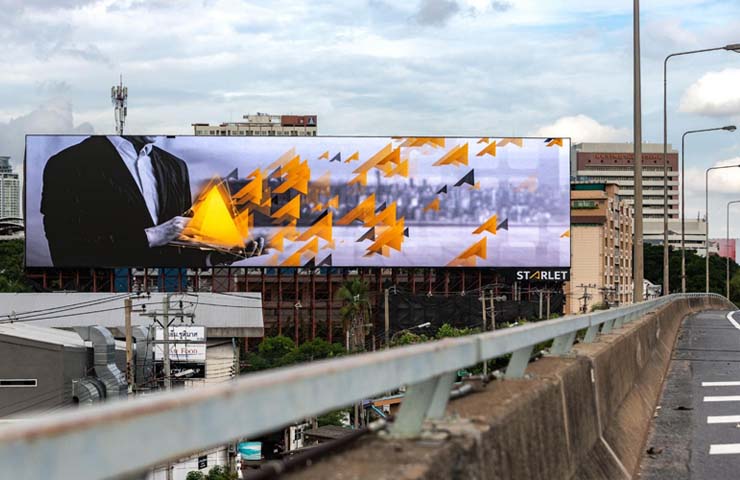

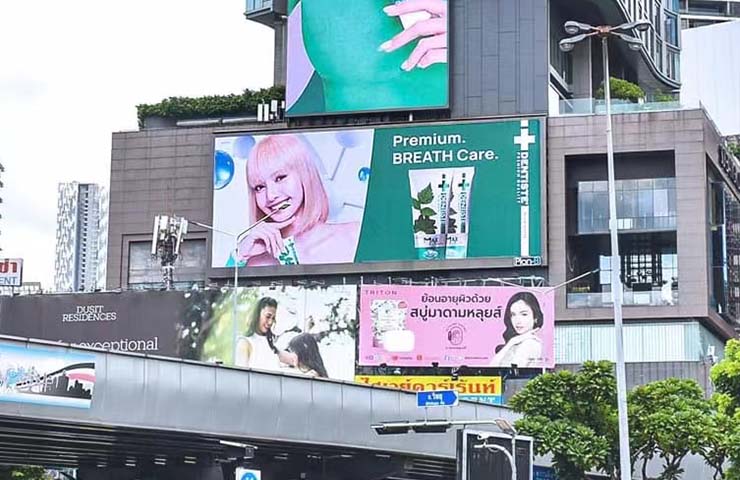

The panel uses bright LED to bring brightness up to 10,000nits, besides, long louver on mask is used to shade LEDs from the sun and it contributes to high contrast.

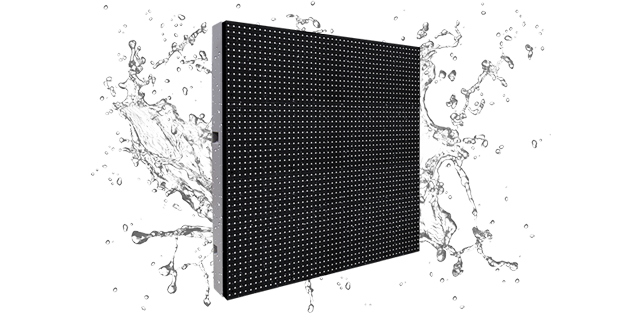

IP65/IP54 withstands extreme weather conditions.

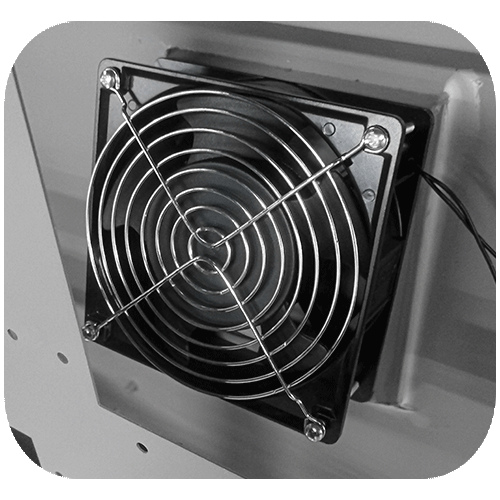

Cooling fans and heat emission holes can rapidly dissipate heat, reducing power consumption.

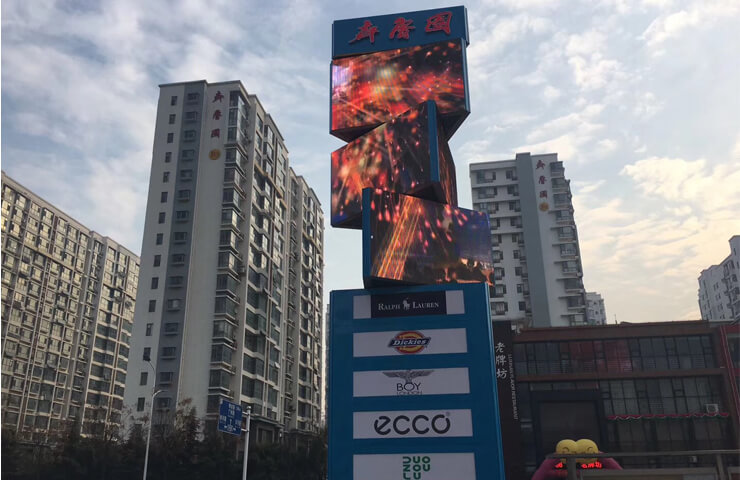

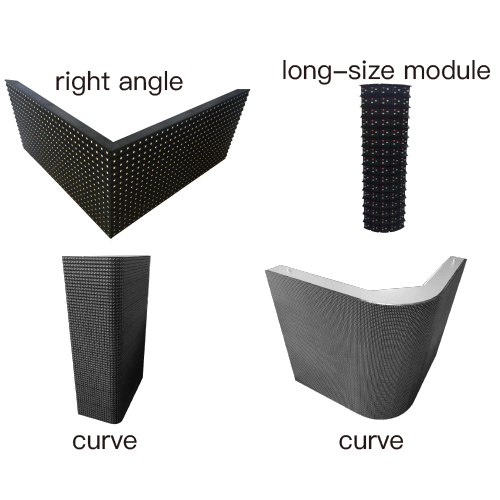

The panel allows you to realize many creative solutions, it can curve, at right angle, or be customized to many sizes and shapes.
| ITEM | ASO-2.5 | ASO-3 | ASO-4 | ASO-5 | ASO-6 | ASO-6 | ASO-8N | ASO-8 | ASO-10 | ADO-10 | ADO-10 | ADO-16 |
| LED | SMD 3 IN 1 | DIP 347 | ||||||||||
| Pixel Pitch (mm) | 2.5 | 3.076 | 4 | 5 | 6 | 6.67 | 8 | 8 | 10 | 10.66 | 10.66 | 16 |
| Module Resolution | 128x64 | 104x52 | 80x40 | 64x32 | 32x32 | 48x24 | 32x16 | 40x20 | 32x16 | 30x15 | 24x24 | 16x16 |
| Module Size (WxH mm) | 320x160 | 320x160 | 320x160 | 320x160 | 192x190 | 320x160 | 256x160 | 320x160 | 320x160 | 320x160 | 256x256 | 256x256 |
| Pixel Density (pixels/㎡) | 160,000 | 105,688 | 62,500 | 40,000 | 27,777 | 22,477 | 15,625 | 15,625 | 10,000 | 8,800 | 8,800 | 3,906 |
| Cabinet Size (WxH mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 1024x1024 | 960x960 | 960x960 | 960x960 | 1024x1024 | 1024x1024 |
| Cabinet Weight (kg/㎡) | 45 | |||||||||||
| Cabinet Material | sheet metal | |||||||||||
| Ingrees Protection | IP65/IP54 | |||||||||||
| Maintenance | Rear only | |||||||||||
| Refresh Rate (Hz) | ≥1920-3840 | ≥3840 | ||||||||||
| Brightness (nits) | 5,000-8,000 | 5,000-8,000 | 5,500-8,000 | 5,500-8,500 | 6,000-10,000 | 6,000-10,000 | 6,000-10,000 | 6,000-10,000 | 6,500-10,000 | 10,000 | 10,000 | 10,000 |
| View Angle (H./V.) | 140° /120° | 120° /60° | ||||||||||
| Contrast Ratio | 4,000 : 1 | 5,000 : 1 | 6,000 : 1 | 8,000 : 1 | ||||||||
| Max. Power Consumption | 800W/㎡ | 600-800W/㎡ | 330W/㎡ | |||||||||
| Avg. Power Consumption | 266W/㎡ | 110W/㎡ | ||||||||||
