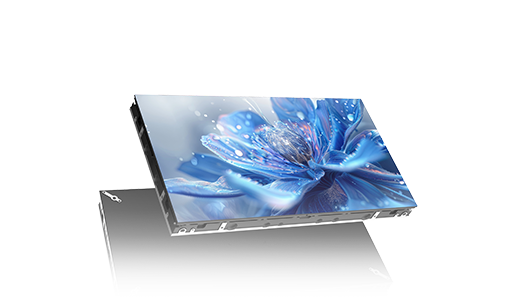

ZonePro has released its new outdoor fine pitch screen solution, which is based on the MIP technology. HDO series has pixel pitch of P0.93, P1.25, P1.56, and P1.87, for outdoor use.Under the same screen size, HDO series screen resolution is higher, bringing outdoor LED screens into the ultra-high-definition era.
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team

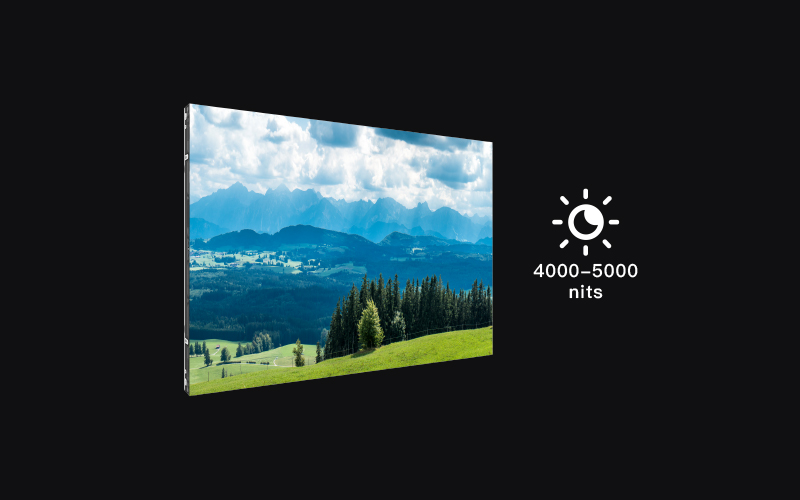

HDO series can achieve a brightness of 4000-5000 nits, with a higher contrast ratio and a more outstanding screen display quality.

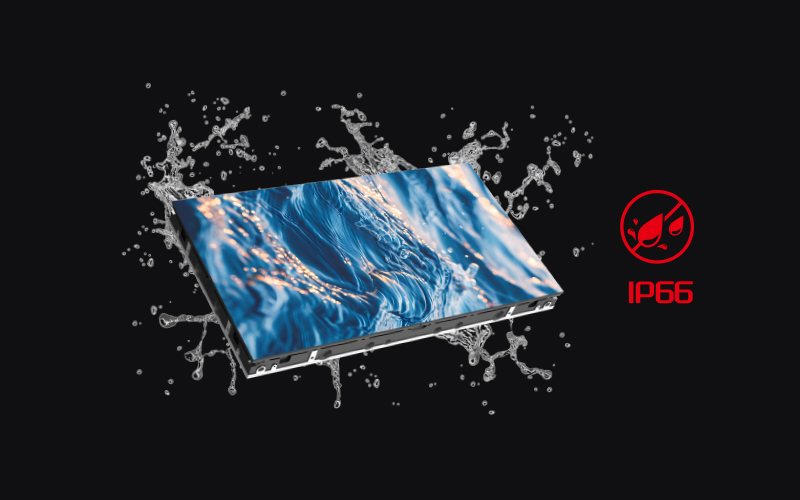

Featured with a patented waterproof structural design, HDO series has a high waterproof level of IP66 at both the front and back side, making it more stable and reliable in outdoor environment.

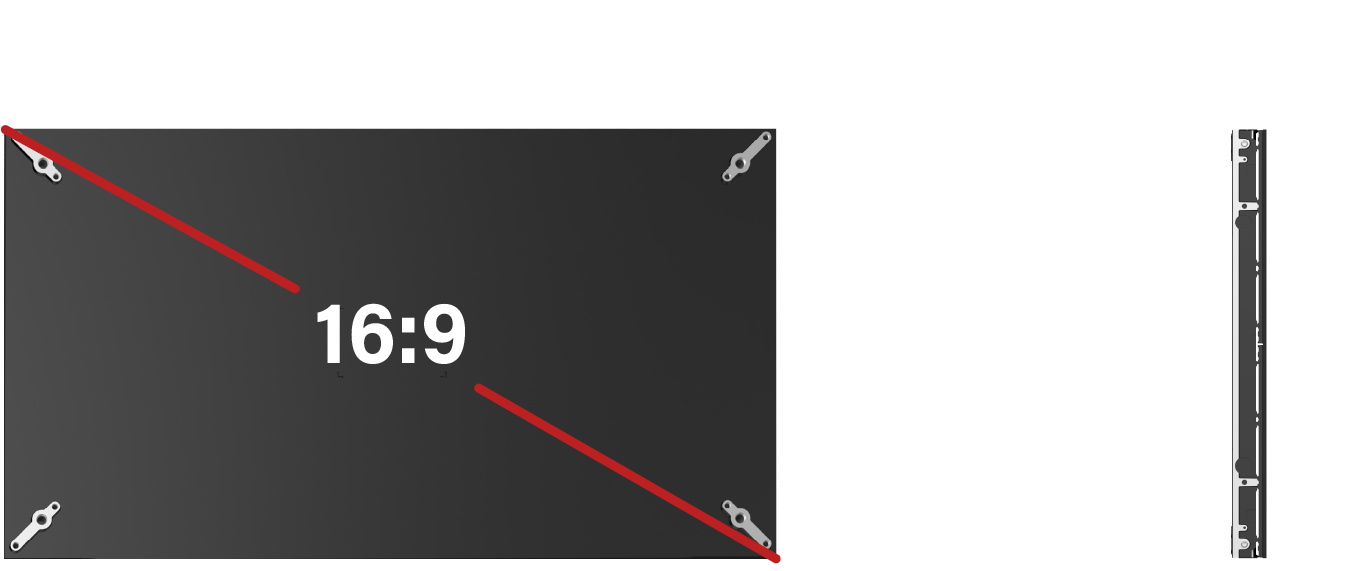

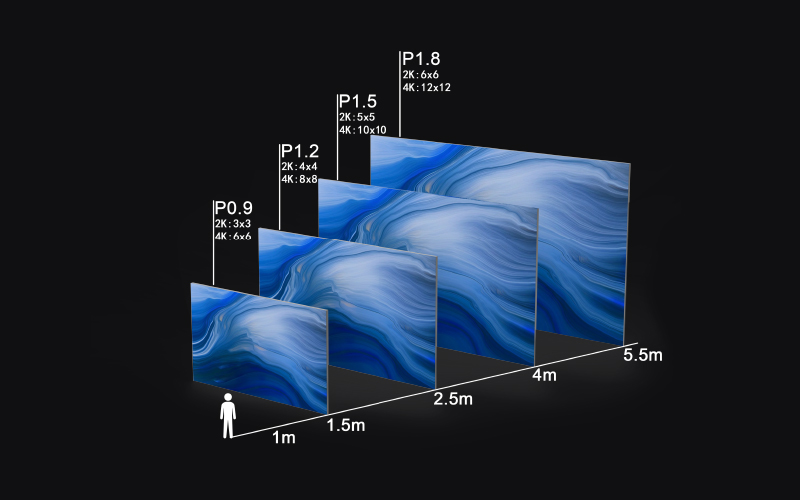

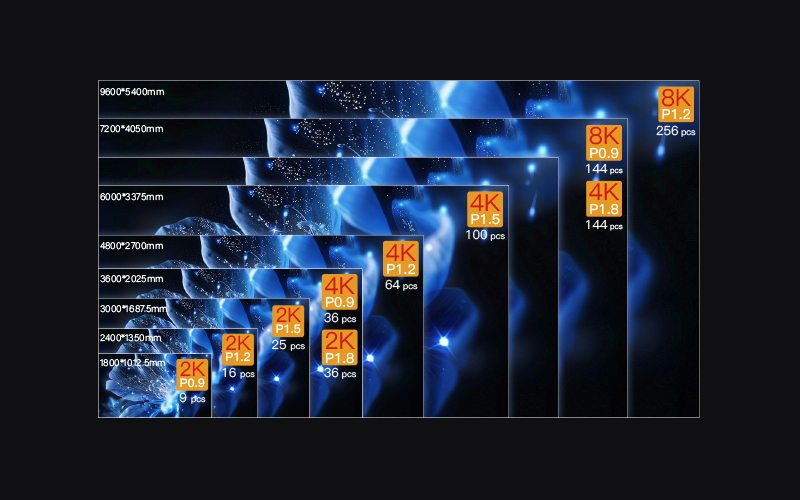

Cabinet size is 600*337.5mm, with a aspect ratio of 16:9, which is convenient for splicing 2K, 4K and 8K HD LED video wall and provides a better visual effect.
The HDO series has pixel pitch of P0.93, P1.25, P1.56, and P1.87, for outdoor use.Under the same screen size, HDO series screen resolution is higher, bringing outdoor LED screens into the ultra-high-definition era.

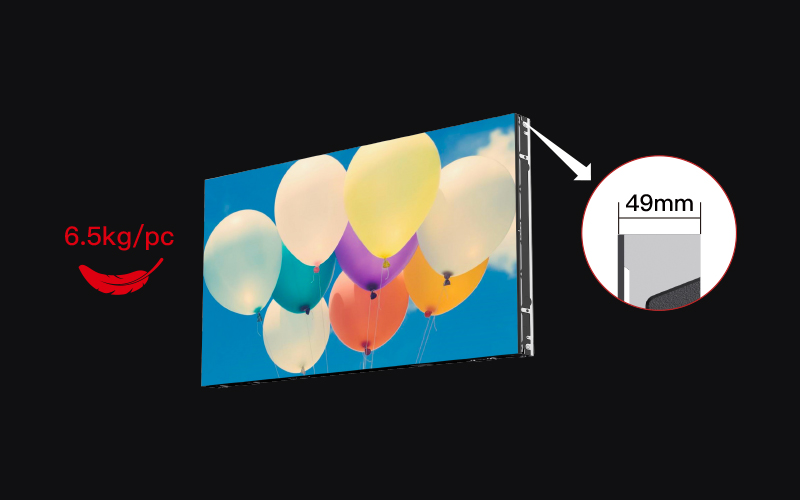

HDO series adopts the thinnest cabinet design in the LED screen industry, with a thickness of only 49 millimeters and a weight of 6.5 kilograms per unit, making installation and transportation more convenient.
Modules and the remained parts are front accessible.

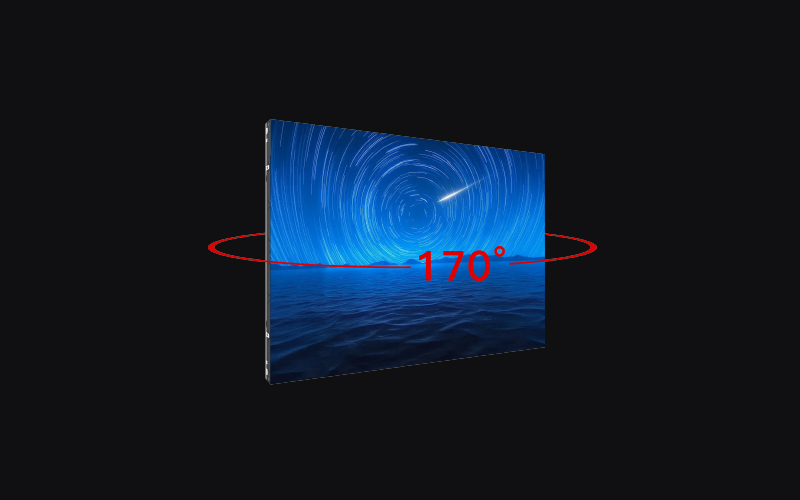

HDO series has an ultra-wide viewing angle of 170°, so the content on the screen is clearly visible from most angles.
HDO series can be mounted on wall directly without additional structure, easy and fast.

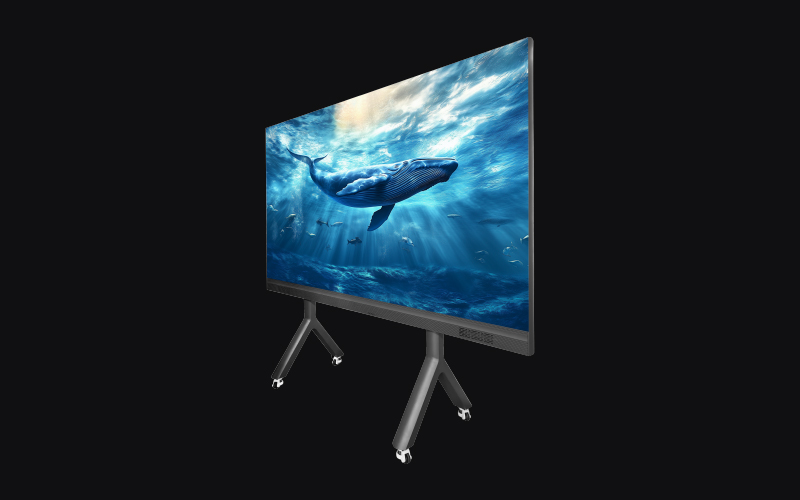

HDO is available with an optional all-in-one structure, making it easy to install and move.
| ITEM | MIP | |||
| Pixel Pitch (mm) | 0.9375 | 1.25 | 1.5625 | 1.875 |
| Module Resolution | 320x180 | 240x135 | 192*108 | 160x90 |
| Module Size (WxH mm) | 300x168.75 | 300x168.75 | 300x168.75 | 300x168.75 |
| Pixel Density (pixels/m²) | 1,137,777 | 640,000 | 409,600 | 284,445 |
| Cabinet Size (WxH mm) | 600x337.5x49 | 600*337.5*49 | 600*337.5*49 | 600*337.5*49 |
| Cabinet Weight (kg/pc) | 6.5 | 6.5 | 6.5 | 6.5 |
| Cabinet Material | Die cast aluminum | |||
| Ingress Protection | IP66/IP66 | IP66/IP66 | IP66/IP66 | IP66/IP66 |
| Maintenance | Front | Front | Front | Front |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Brightness (nits) | 4000-4500 | 4000-4500 | 4500-5000 | 4500-5000 |
| View Angle (H./V.) | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 |
| Max. Power Consumption | 680W/m² | 680W/m² | 680W/m² | 680W/m² |
| Avg. Power Consumption | 220W/m² | 220W/m² | 220W/m² | 220W/m² |
