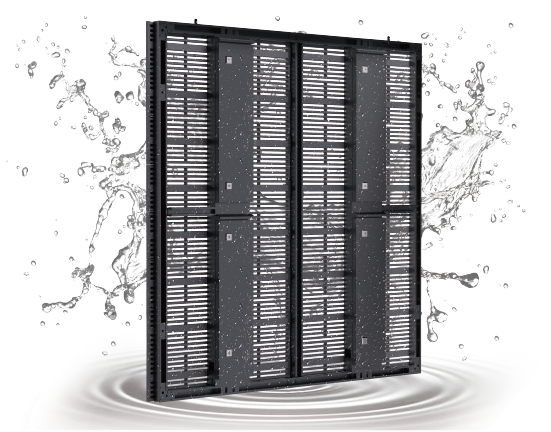

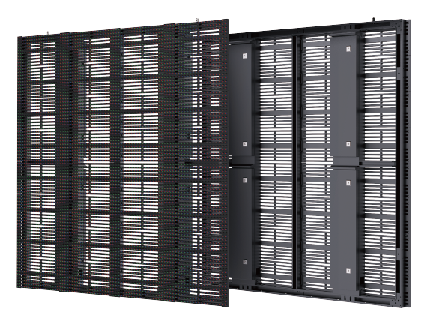

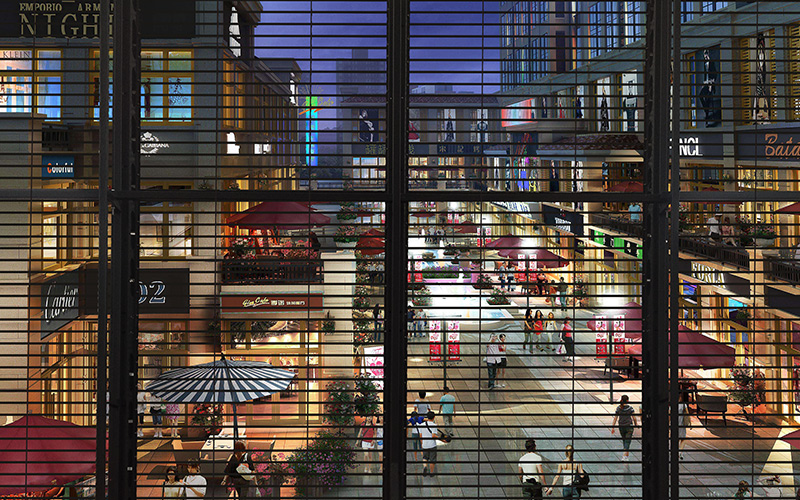

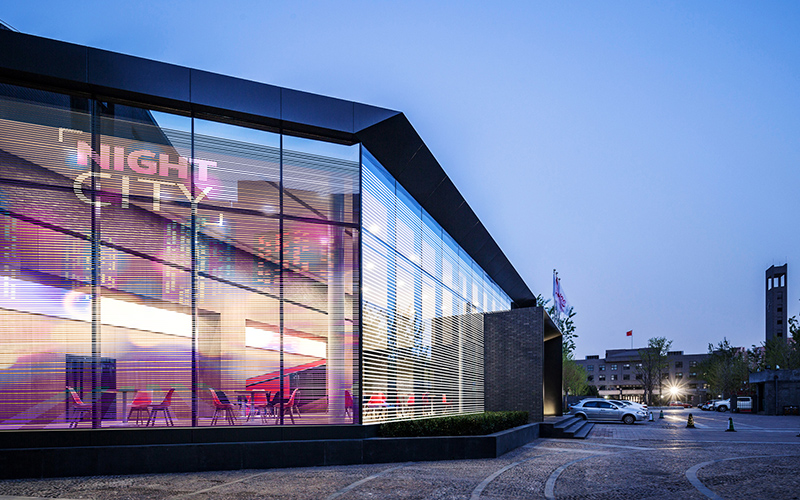

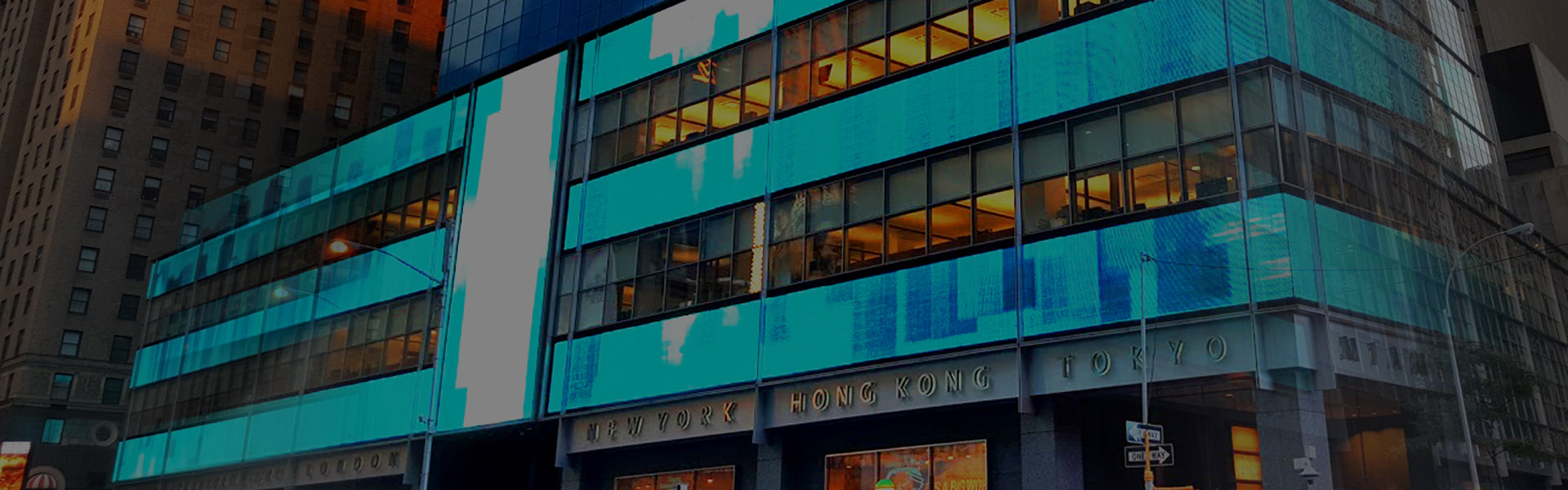

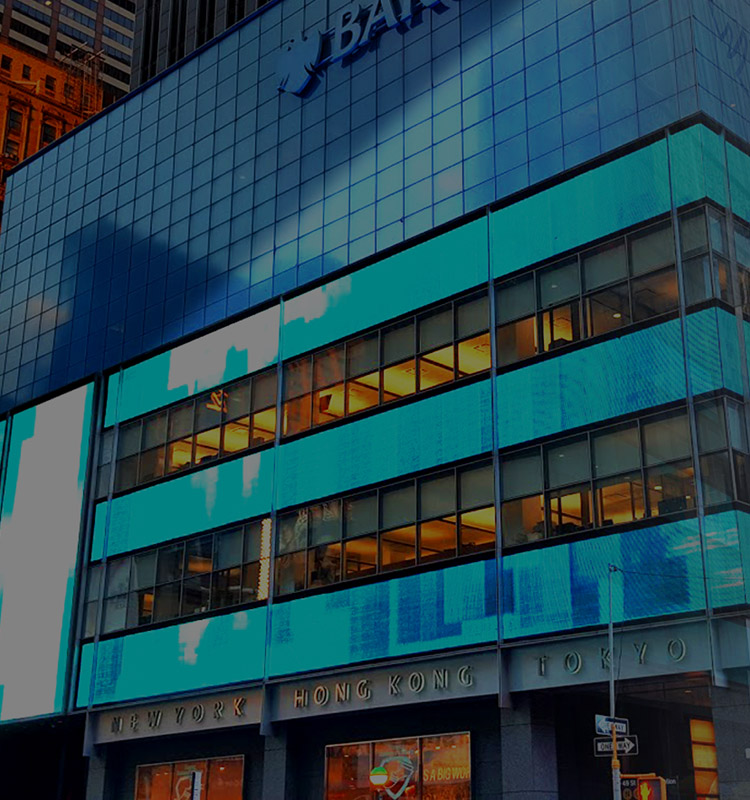

MCO is a lightweight and high transpareancy outdoor LED media facade panel.It weights only 21kg/㎡,60% lighter than traditional sheet metal panel.It has a high transpareancy of 35%~70%.
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team

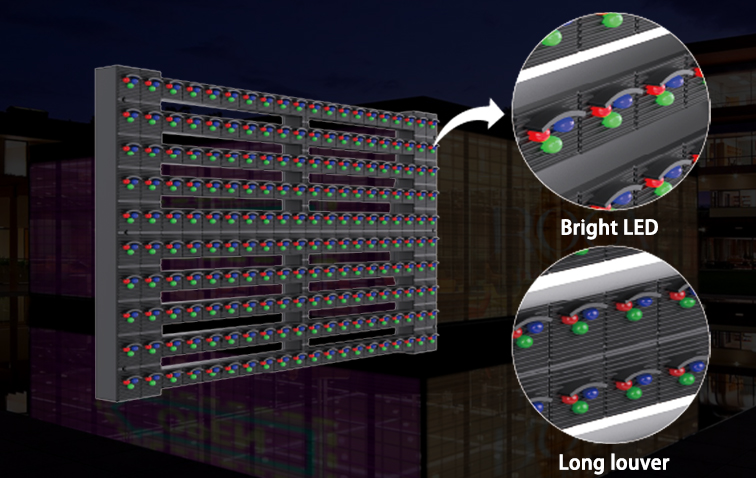

The panel uses bright LED to bring brightness up to 10,000nits, besides, long louver on mask is built to shade LEDs from lights. These contribute to a very high contrast on the panel.

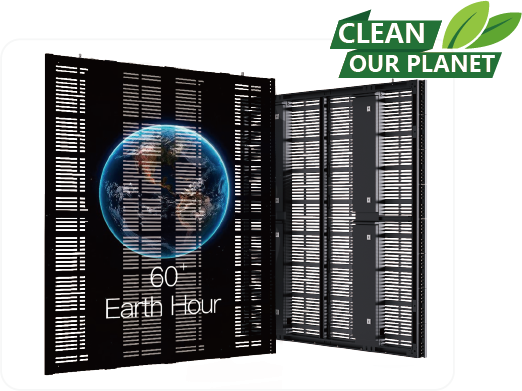

The panel weights only 21kg/㎡,
60% lighter than non-transparent panel.

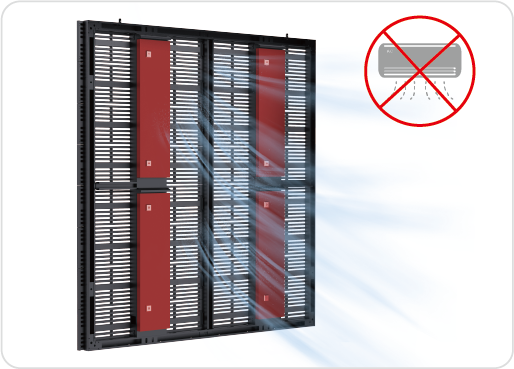

Most of the parts are with floating air. The heat dissipation is excellent and the extra cooling devices (AC) are unneeded.
| ITEM | MCO-16 | MCO-20 | MCO-25 | MCO-25/50 | MCO-31.25 |
| LED | DIP347 | DIP347 | DIP347 | DIP347 | DIP347 |
| Pixel Pitch (mm) | 16.67 | 20 | 25 | H.25/V.50 | 31.25 |
| Module Resolution | 24x12 | 20x10 | 16x8 | 8x8 | 16x8 |
| Module Size (W x H mm) | 400x200 | 400x200 | 400x200 | 400x200 | 500x250 |
| Pixel Density (pixels/m²) | 3,600 | 2,500 | 1,600 | 800 | 1,024 |
| Cabinet Size (WxH mm) | 1600x1600 | 1600x1600 | 1600x1600 | 1600x1600 | 1000x1500 |
| Cabinet Weight (kg/m²) | 21 | 21 | 20 | 19 | 19 |
| Transparent Rate | 35% | 40% | 45% | 70% | 50% |
| Cabinet Material | Galvanized sheet metal | ||||
| Ingress Protection | IP65/IP54 | ||||
| Maintenance | Rear | ||||
| Refresh Rate (Hz) | IP65/IP54 | ||||
| Brightness (nits) | 8,500-10,000 | 8,500 | |||
| View Angle (H./V.) | 120°/100° | ||||
| Power Consumption (W/m²) | 360/120 | ||||
