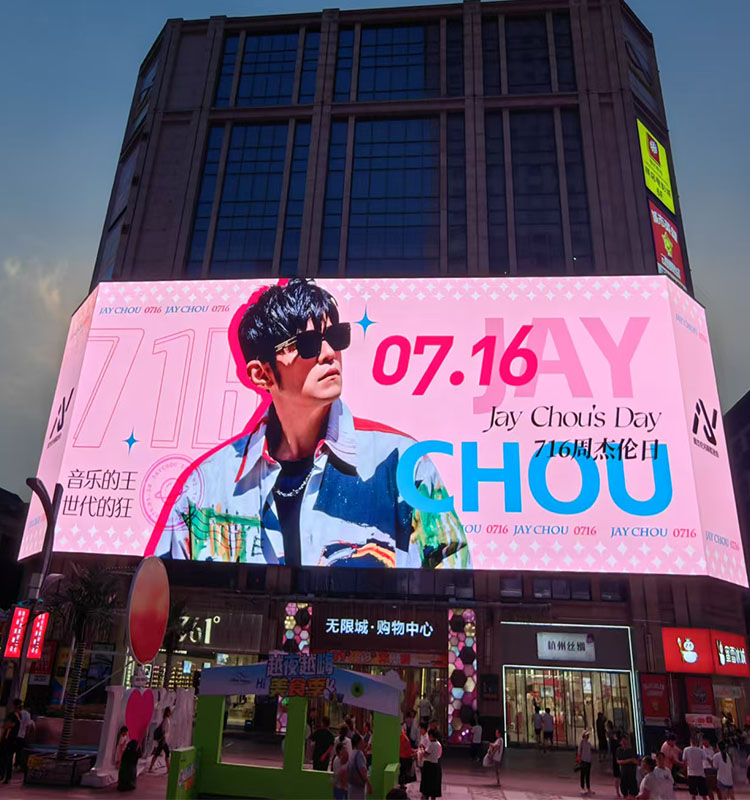

MC Pro 960 is a high-brightness, low-power aluminum cabinet. It adopts electronic circuit design of common cathode , so it can reach max brightness of over 10,000 nits ,while power consumption is only 390w/sqm, which can saves energy by more than 55%. It has IP66-level waterproof cabinet and aviation plug,and cables are not exposed, which makes it more more reliable. It is a good solution for outdoor media screen.
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team

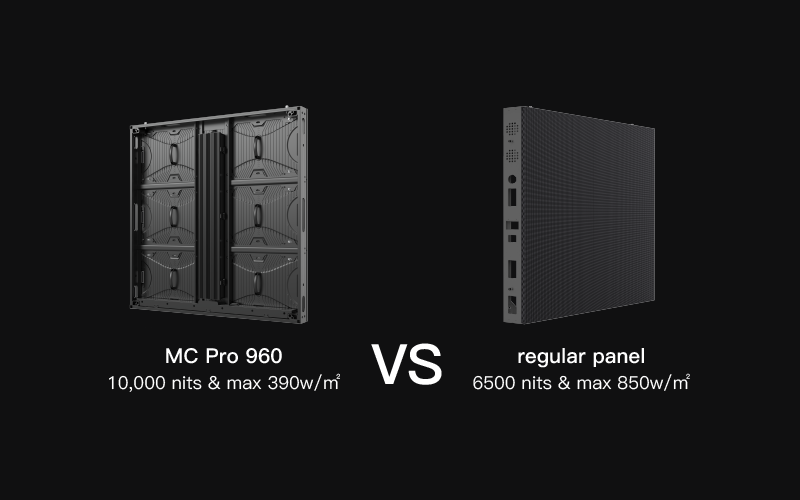

The panel adopts electronic circuit design of common cathode with two different (best) power supply to red LED and green & blue LED, and good materials used such as highly efficient & bright LED and highly efficient PSU, the panel performs 10,000 nit with max 390w/㎡. Compared with regular screens, it saves energy by more than 55%.

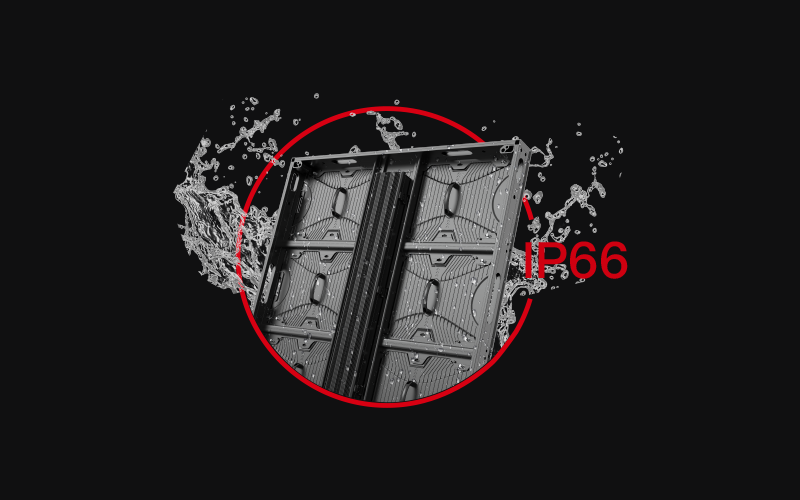

Cabinet and module shell are fully enclosed and waterproof level is IP66, which makes it more stable and reliable in outdoor environments.
The panels use high brightness and energy-saving LEDs that bring up to 16,000nits brightness. Besides, there are long louvers on the module mask that is made very black, which contributes to clear and bright images on screen for outdoor use.

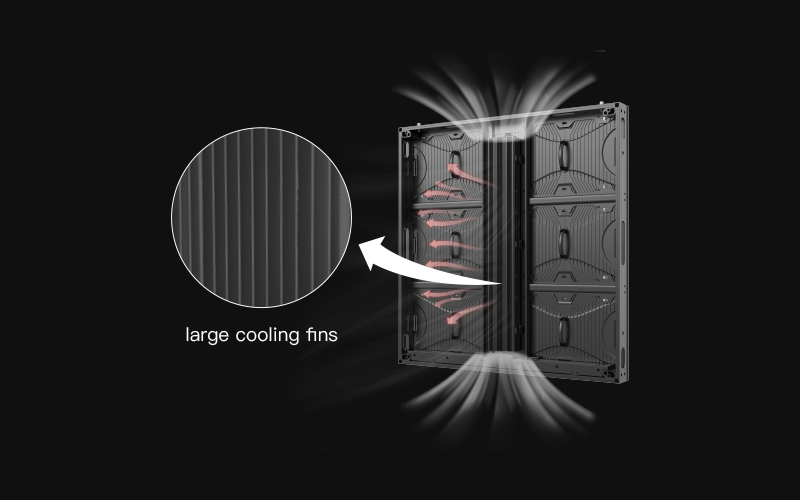

Cabinet chassis and module shell are made of high thermal conductivity die-cast aluminum material; besides, we structurally design the best heat dissipation for the modules and PSU e.g., the module shell and power box are made of diecast aluminum with large heat fins. Panel has excellent heat dissipation effect, and higher stability & service life.

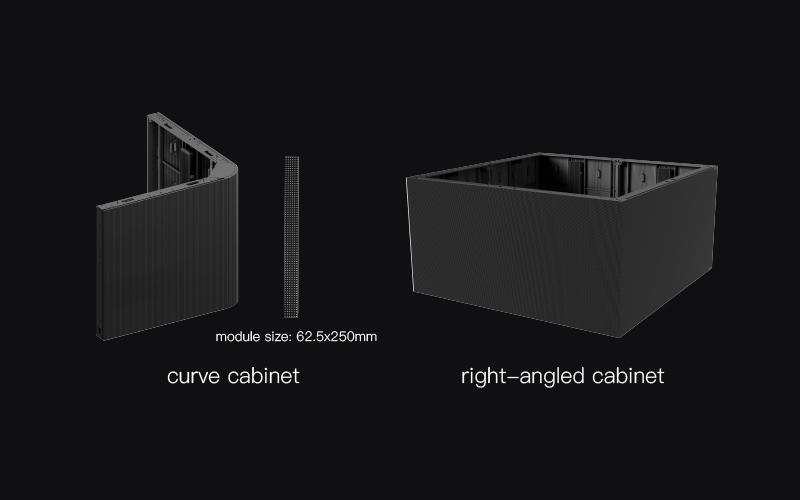

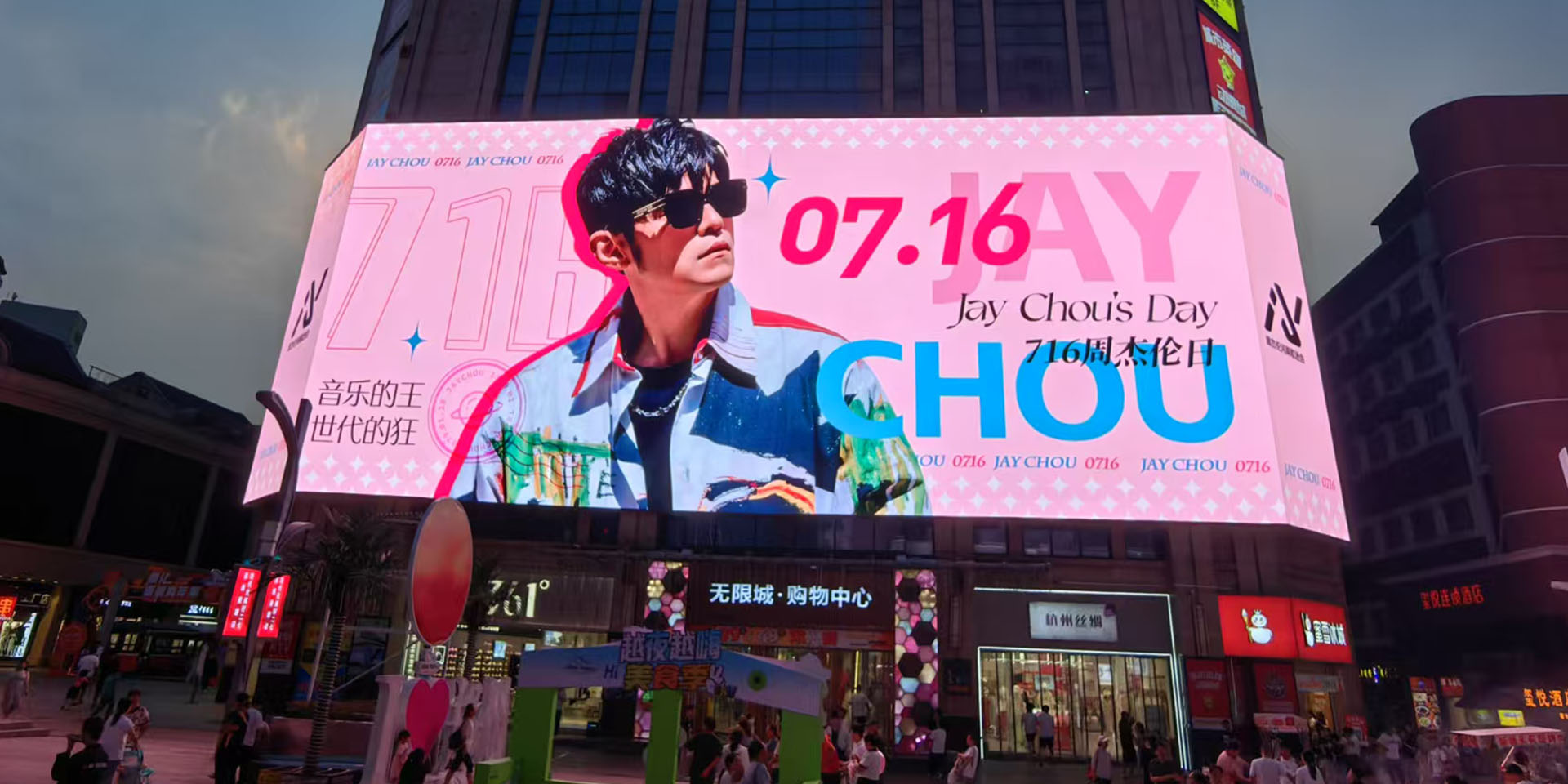

The panel allows you to realize many creative solutions, it can make perfect seamless curve and right angle for outdoor naked-eye 3D LED screen.

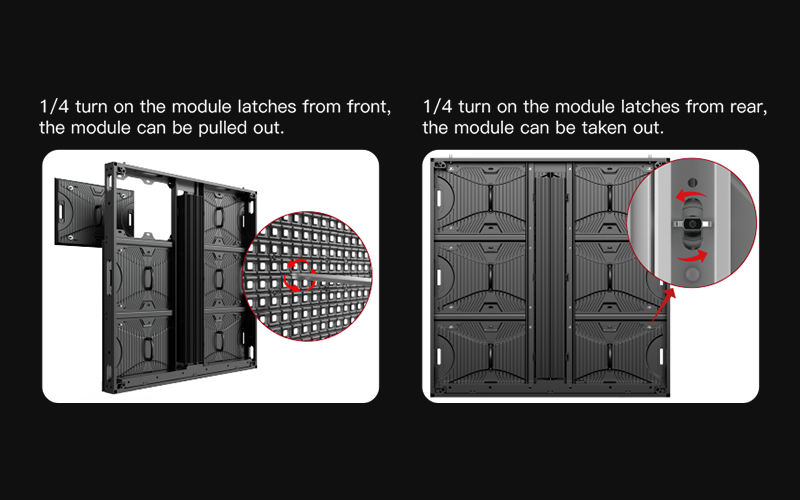

Module, PSU, receiving card and all parts can be maintained in both front and rear side, which meets the installation and maintenance requirements in various application scenarios.

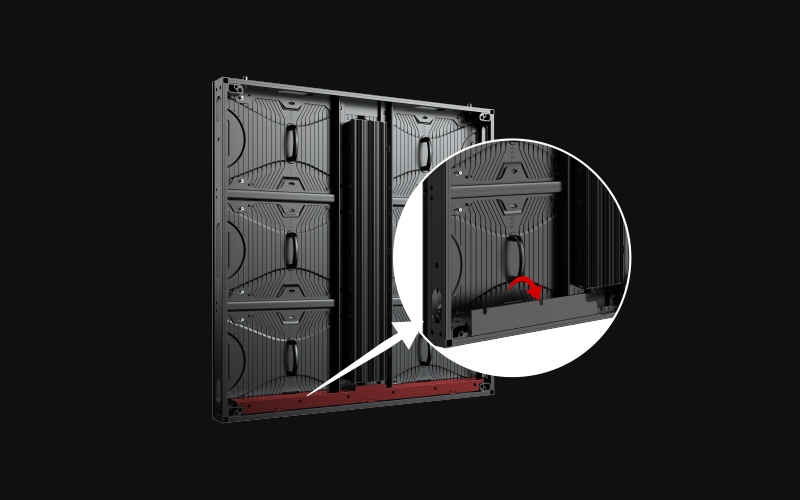

Cabinet adopts IP66 waterproof-level aviation plug and cables are not exposed, more reliable.

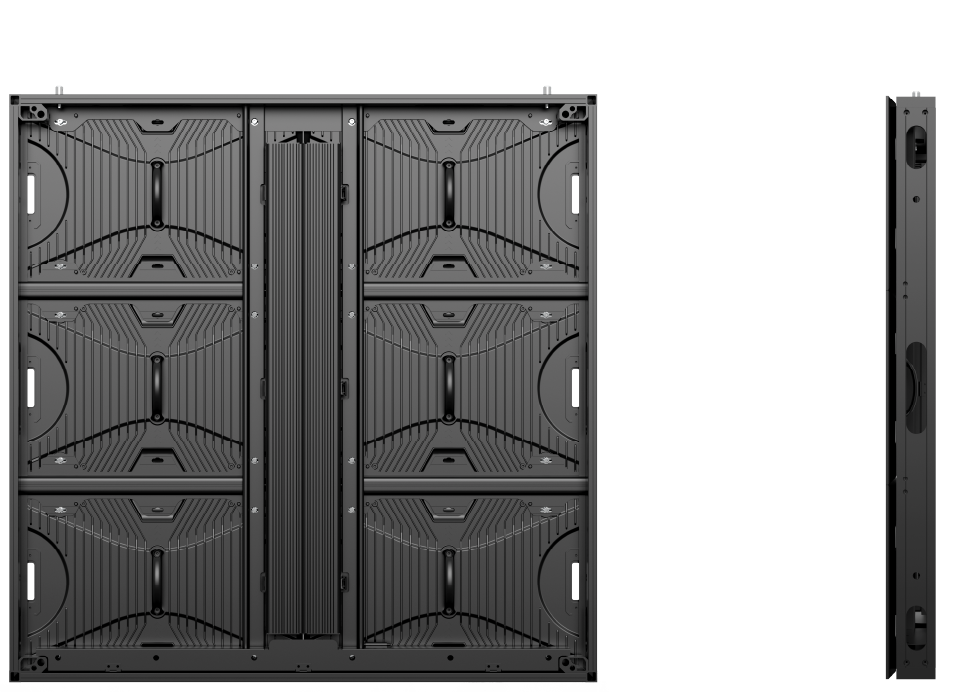

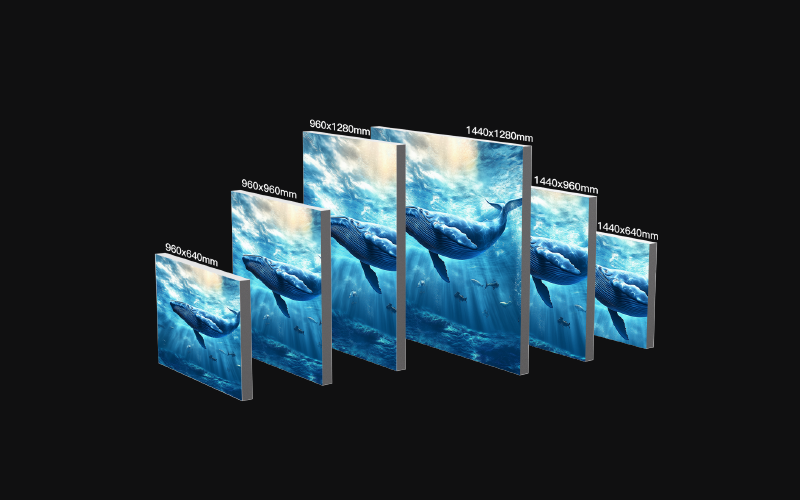

Cabinet size is available in 960*960mm, 960*640mm, 960*1280mm, 1440*960mm, and it can meet most of the required screen size.

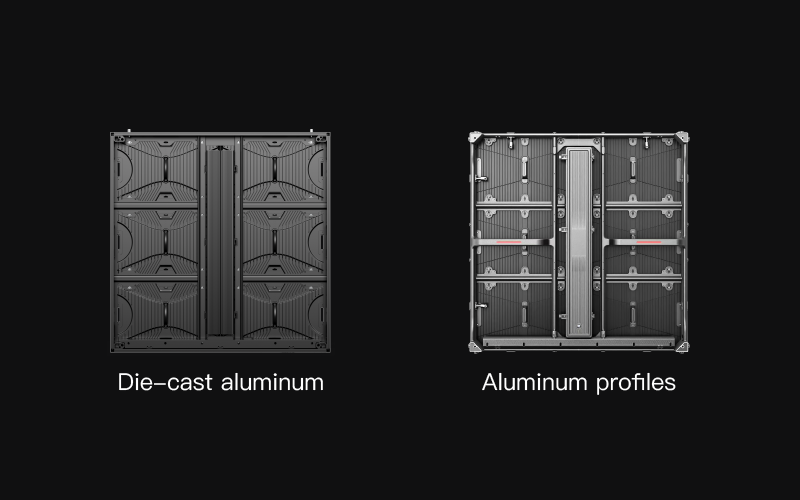

Die-cast aluminum (960*960mm only) and aluminum profiles (multiple size optional) are available, and module shell materials has both diecast aluminum and plastic, to provide customers with more choices.
| ITEM | P4 | P4.44 | P5 | P5.71 | P6.67 | P8 | P10 |
| LED | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch (mm) | 4 | 4.44 | 5 | 5.71 | 6.67 | 8 | 10 |
| Module Resolution | 120x80 | 108x72 | 96x64 | 84x56 | 72x48 | 60x40 | 48x32 |
| Module Size (W x H mm) | 480x320 | 480x320 | 480x320 | 480x320 | 480x320 | 480x320 | 480x320 |
| Pixel Density (pixels/m²) | 62,500 | 50,625 | 40,000 | 30,625 | 22,500 | 15,625 | 10,000 |
| Cabinet Size (WxH mm) | 960*960，960*1280，960*640，1440*960，1440*640，1440*1280 | ||||||
| Cabinet Weight (kg/m²) | 27 | 27 | 27 | 27 | 27 | 27 | 27 |
| Gray Scale (bits) | ≥14 | ≥14 | ≥14 | ≥14 | ≥14 | ≥14 | ≥14 |
| Cabinet Material | Die-cast aluminum / Aluminum profiles | ||||||
| Ingress Protection | IP66/IP66 | IP66/IP66 | IP66/IP66 | IP66/IP66 | IP66/IP66 | IP66/IP66 | IP66/IP66 |
| Maintenance | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Refresh Rate (Hz) | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness (nits) | 8,000-10,000 | 8,000-10,000 | 8,000-10,000 | 8,000-10,000 | 10,000 | 10,000 | 10,000 |
| Contrast | 8,000 : 1 | 8,000 : 1 | 8,000 : 1 | 8,000 : 1 | 10,000 : 1 | 10,000 : 1 | 10,000 : 1 |
| Power Consumption (W/m²) | 450 / 150 | 450 / 150 | 450 / 150 | 390 / 130 | 390 / 130 | 390 / 130 | 390 / 130 |
