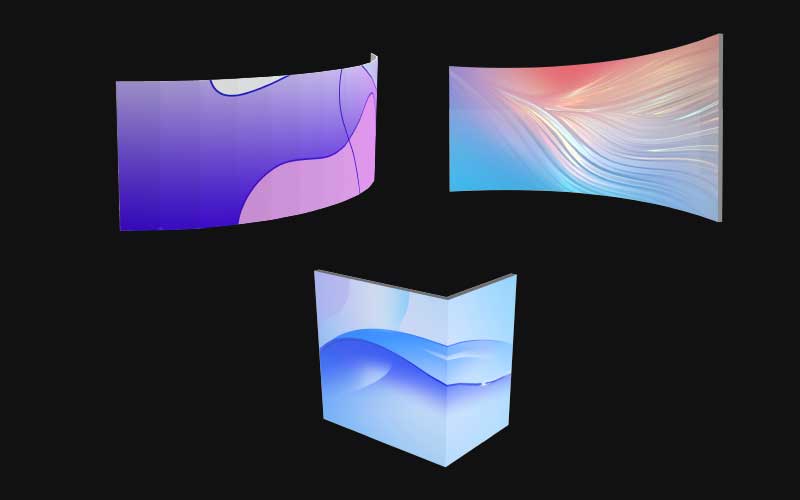

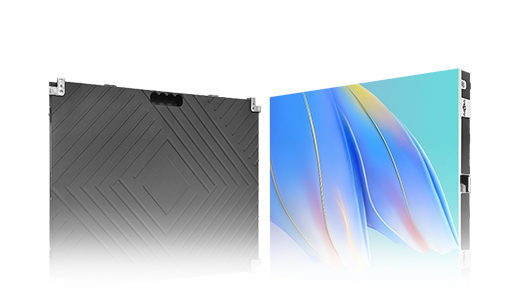

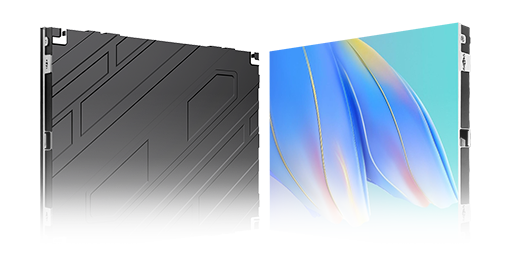

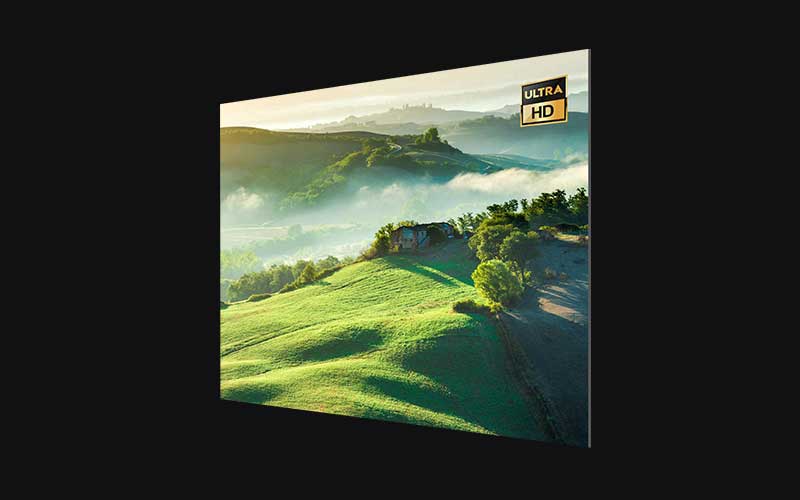

zonePro MFI is an indoor fine pitch led screen. The panel has six different panel sizes and seven pixel pitchs such as P1.2,P1.5,P1.8,P2.0,P2.5,P3.0 and P4.0. It is super flexible to meet different screen sizes.The diecast aluminum chassis has better flat & structurally precise.The panle is an ideal choice for HD indoor led video wall.
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team

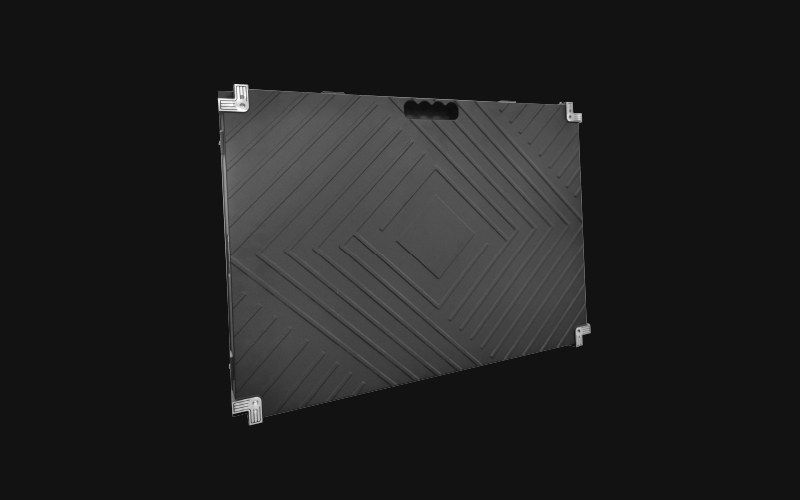

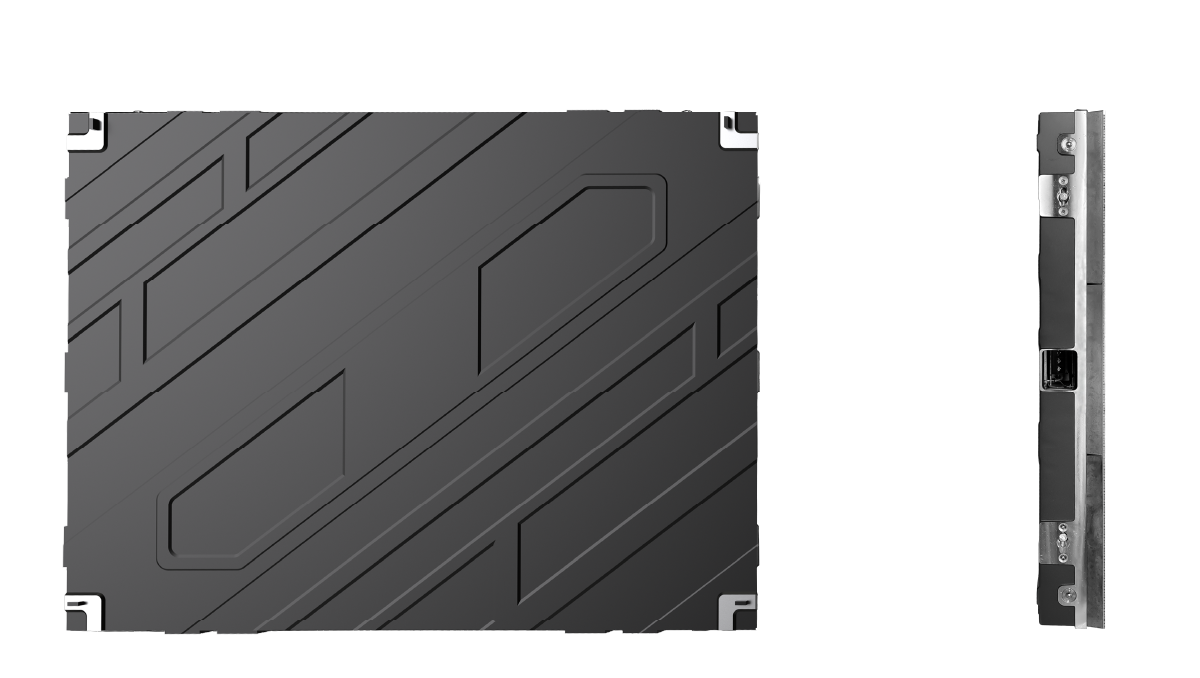

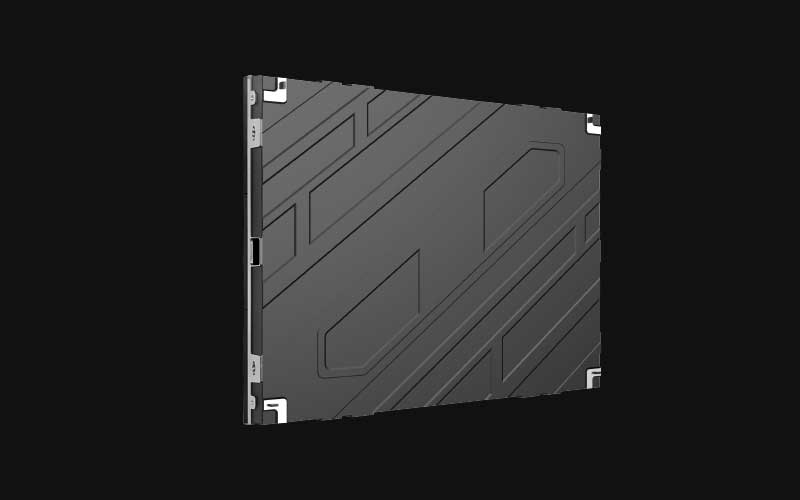

Chassis made of diecast aluminum, with CNC machining.

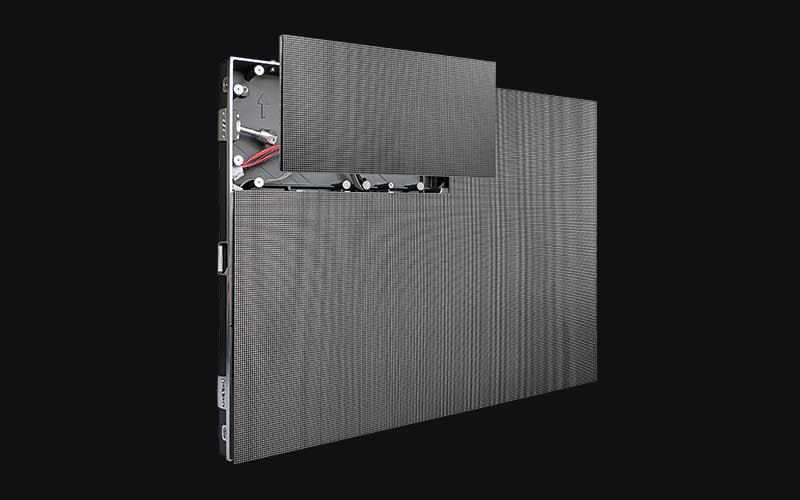

Modules attach directly with chassis, not with magnets.

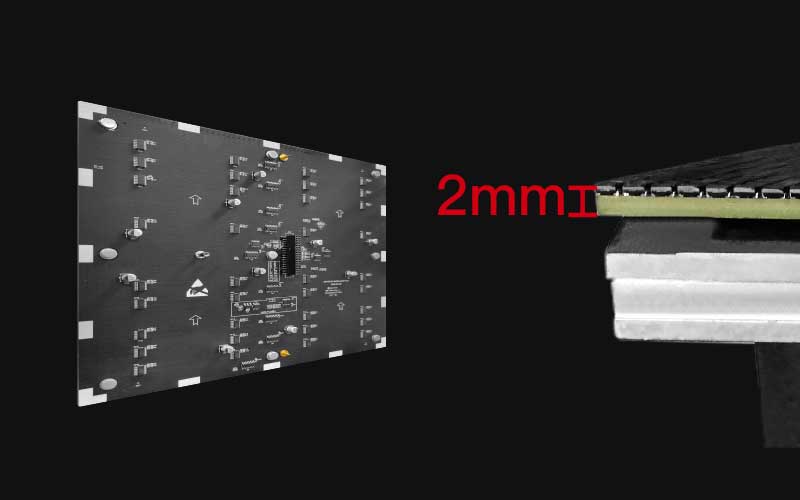

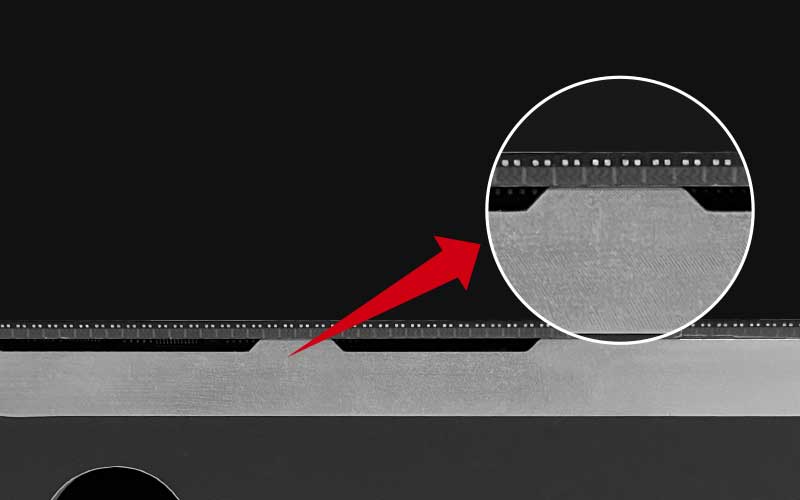

Module without plastic shell, to minimize the accumulated tolerance and to improve precision

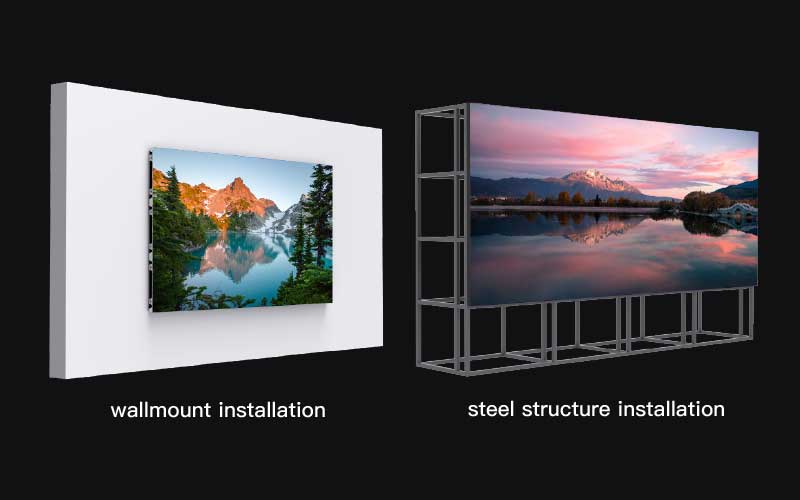

The panel supports both wallmount installation and steel structure installation.
The panel has P1.2, P1.5, P1.8, P2.0, P2.5, P3, P4, to provide customers with more high-definition options.
Customers can choose high speed IC drivers and this will help the panel obtain a max graysale of 12 bits or even 14 bits, then the screen is able to perform as rich details as what the content has.

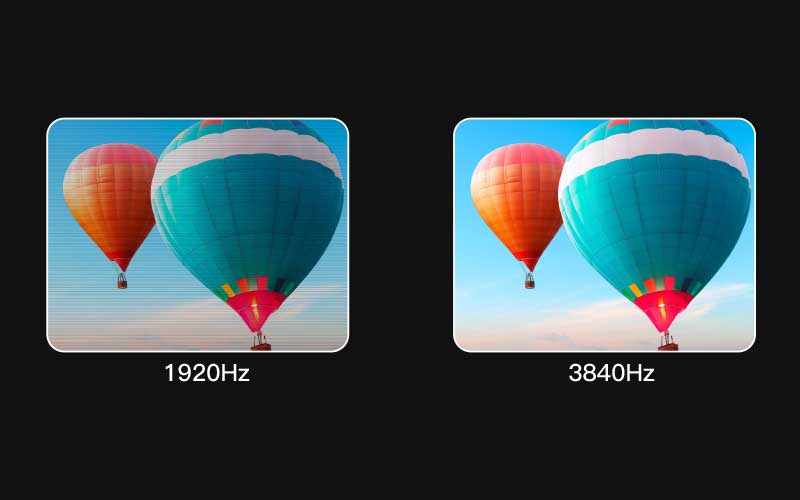

Customers can choose high speed IC drivers and this will help the panel obtain a max refresh of 1920Hz or even 3840Hz, then the screen is able to perform best smooth.

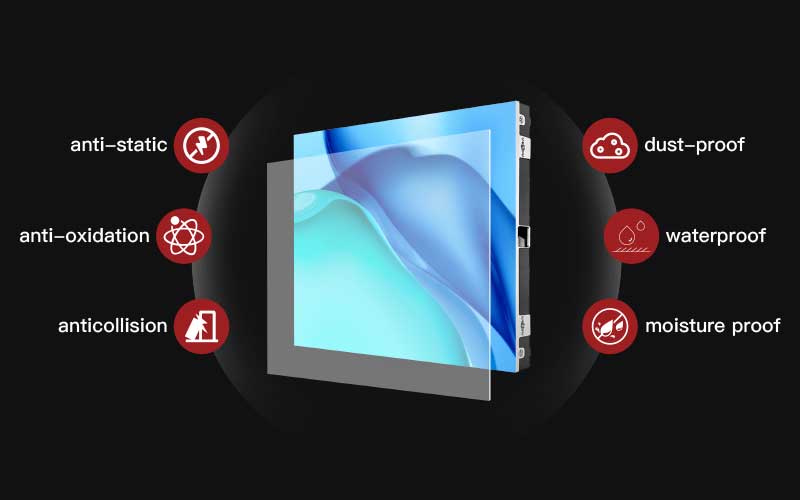

Panels in GBO modules have better viewing angle, having a level of waterproof and impact resistance.
| Pixel Pitch(mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 | P3 | P4 |
| LED Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Density(pixels/㎡) | 640,000 | 426,409 | 288,369 | 250,000 | 160,000 | 110,889 | 62,500 |
| Brightness(cd/㎡) | 400-600 | 400-600 | 400-600 | 400-600 | 600-800 | 600-800 | 600-800 |
| Module Size(W x H mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Module Resolution(pixels) | 256x128 | 208x104 | 172x86 | 160x80 | 128x64 | 104x52 | 80x40 |

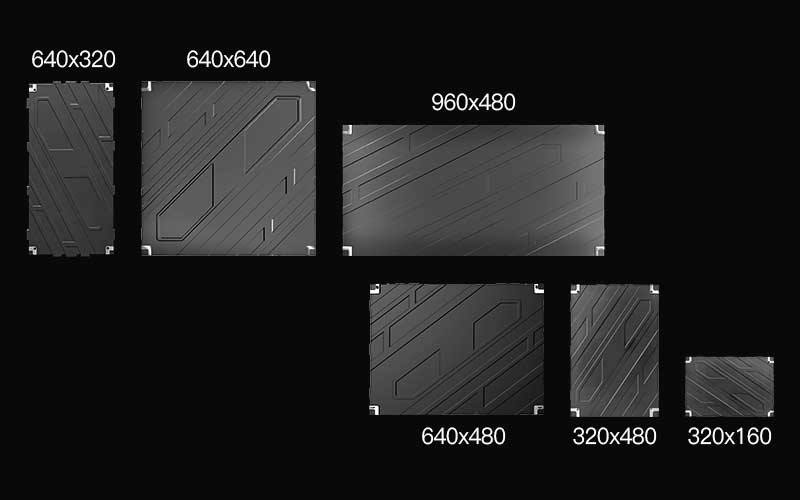

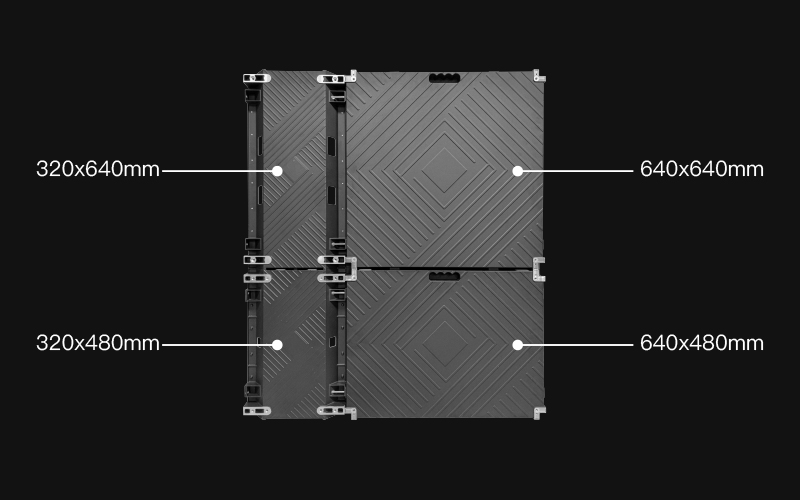

| Panel Size(W x H mm) | 640x480 (Standard size), or 640x320、640x640、960x480、320x480、320x160 | ||||||
| Panel Weight(kg/pc) | 8kg/pc (640*480mm) | ||||||
| Cabinet Materials | Aluminum | ||||||
| Power Consumption(Max/Avg) W/㎡ | 500/170 | ||||||
| Maintenance | Front Only | ||||||
| Refresh Rate | 3840Hz | ||||||
| Gray Scale | ≤14 bits | ||||||
| Ingress Progress | IP30 | ||||||
