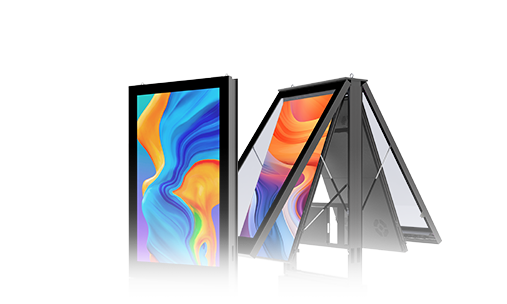

MIO Pro is designed and built for replacing outdoor LCD kiosk. ZonePro use outdoor MIP technology to achieve outdoor UHD led screen.MIO Pro series offers pixel pitches ranging from P0.93 to P1.87, covering the full spectrum of outdoor fine-pitch requirements. By delivering higher resolution within the same cabinet size, it is ushering in a new era of Ultra High Definition for outdoor LED displays.
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team
MIO Pro series offers pixel pitches ranging from P0.93 to P1.87, covering the full spectrum of outdoor fine-pitch requirements. By delivering higher resolution within the same cabinet size, it is ushering in a new era of Ultra High Definition for outdoor LED displays.

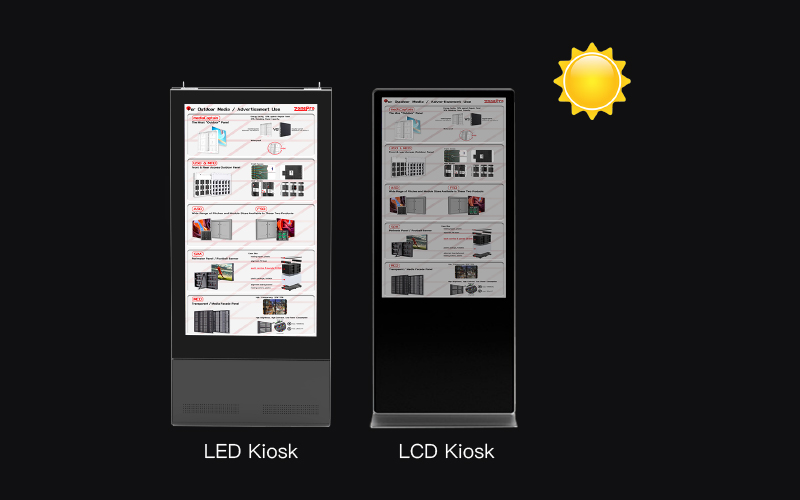

Ordinary outdoor LCD kiosks typically offer a brightness of only 2,000–3,000 nits, whereas MIO Pro achieves a maximum brightness of 4,500 nits. Even in direct sunlight, it maintains a clear and sharp display. This superior visibility ensures a better viewing experience, significantly enhancing the attraction and commercial value of advertisements.

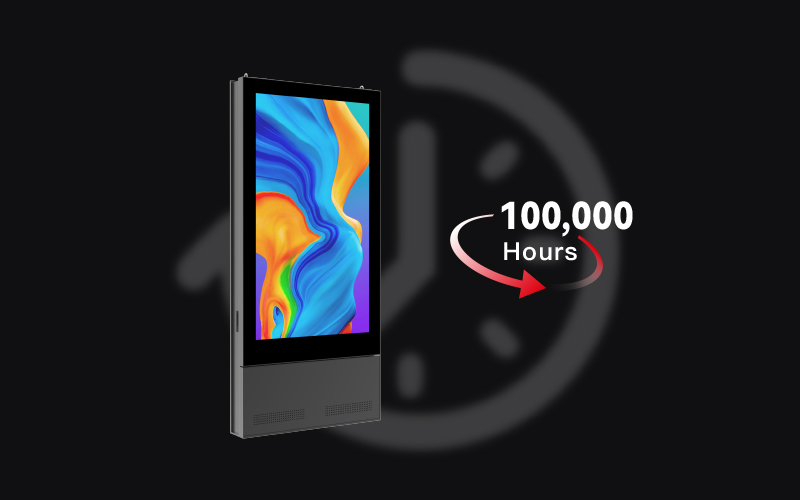

When conventional outdoor LCD kiosks operate in high-temperature, high-humidity, or high-current environments, their backlights are prone to accelerated aging, resulting in reduced brightness. In contrast, the MIO Pro's LED lamps offer a lifespan of up to 100,000 hours, featuring significantly lower brightness attenuation and a longer service life, making it ideal for long-term, stable outdoor operation.

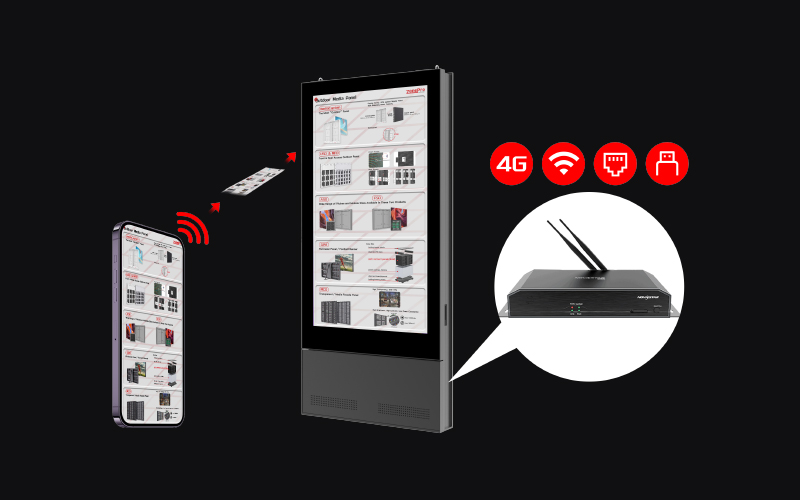

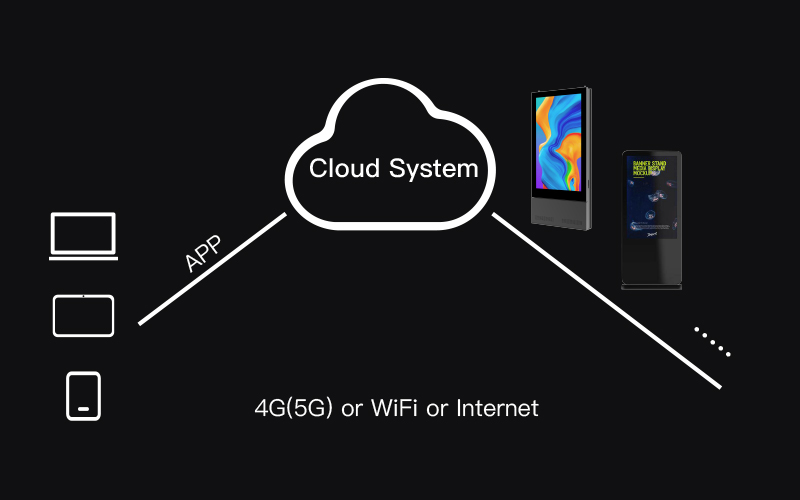

MIO Pro is equipped with a media player (combination of single-chip & simplified processor) with accesses of 4G / 5G, WiFi, internet, USB, HDMI... A smart phone can connect to the WiFi with built-in hotspot of the media player and can manage it via an APP.

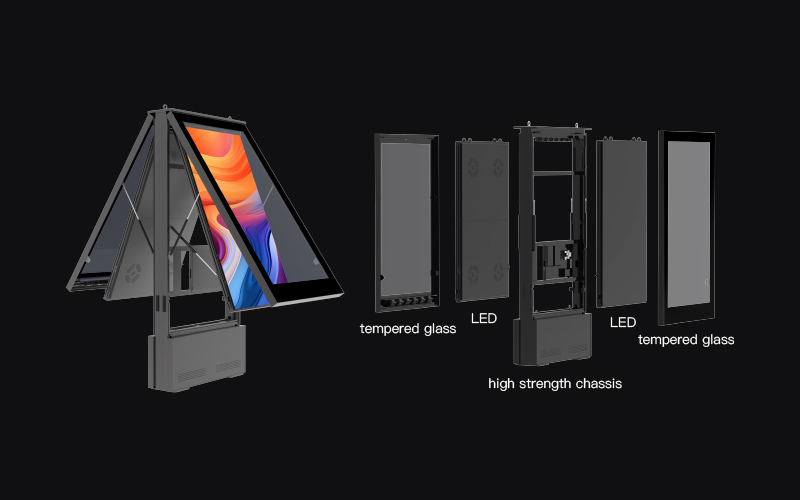

The MIO Pro features a modular design, allowing for the independent replacement of modules, power supplies, and receiving cards. This makes maintenance significantly more convenient and efficient.

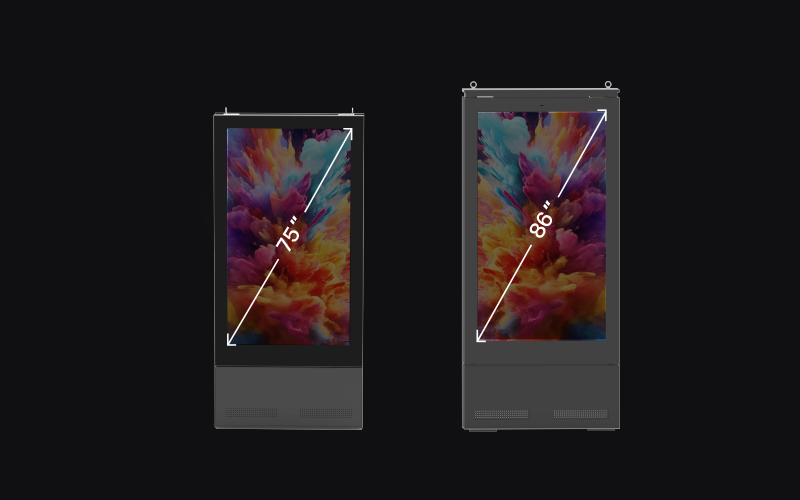

Available in 75-inch and 86-inch, MIO Pro is compatible with the standard sizes of mainstream outdoor LCD kiosks. This allows customers to easily replace their existing LCD display and achieve a seamless transition.
| Dimension | 75'' | 86'' | ||||||||
| Model | P0.9 | P1.2 | P1.48 | P1.5 | P1.8 | P0.9 | P1.2 | P1.48 | P1.5 | P1.8 |
| LED | MIP/COB | |||||||||
| Pixel Pitch (mm) | 0.9306x0.9297 | 1.2407x1.2396 | 1.4888x1.4875 | 1.5581x1.5658 | 1.8611x1.8594 | 0.9306x0.9297 | 1.2407x1.2396 | 1.4888x1.4875 | 1.5581x1.5658 | 1.8611x1.8594 |
| Module Resolution | 144x256 | 108x192 | 90x160 | 86x152 | 72x128 | 144x256 | 108x192 | 90x160 | 86x152 | 72x128 |
| Module Quantity (WxH) | 7x7 | 8x8 | ||||||||
| Pixel Density (pixels/m²) | 1,154,822 | 649,587 | 451,550 | 409,891 | 288,973 | 1,154,822 | 649,587 | 451,550 | 409,891 | 288,973 |
| LED Screen Size | single side: 1138x2476x190mm double side: 1138x2416x278mm | single side: 1276x2714x190mm double side: 1276x2654x278mm | ||||||||
| LED Screen Resolution | 1008x1792 | 756x1344 | 630x1120 | 602x1064 | 504x896 | 1072x1904 | 864x1536 | 630x1120 | 688x1216 | 576x1024 |
| Cabinet Weight | single side: 200kg/pc; double side: 285kgs/pc | single side: 240kg/pc; double side: 300kgs/pc | ||||||||

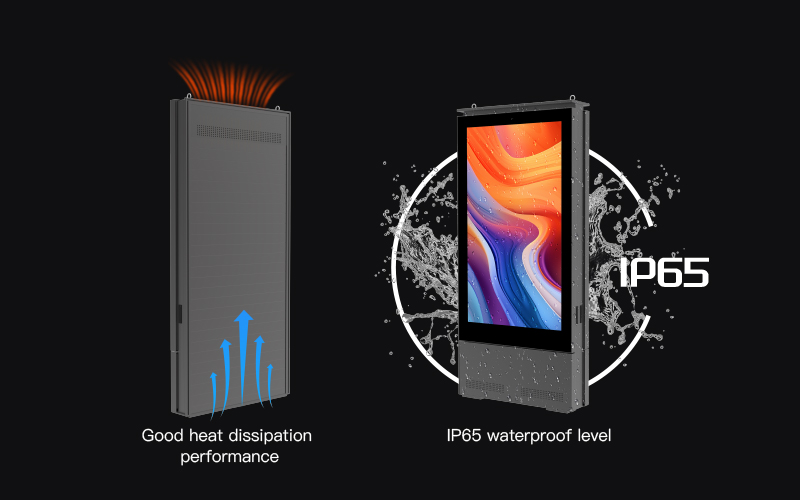

| Ingress Protection | IP65/IP65 | |||||||||
| Refresh Rate (Hz) | ≥3840Hz | |||||||||
| Brightness (nits) | 3,500-4,000 | 4,000-4,500 | 3,500-4,000 | 4,000-4,500 | ||||||
| Power Consumption (W/m²) | 750 / 250 | |||||||||
