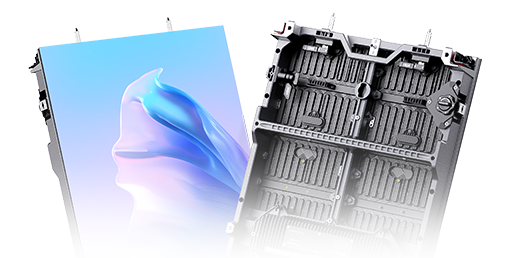

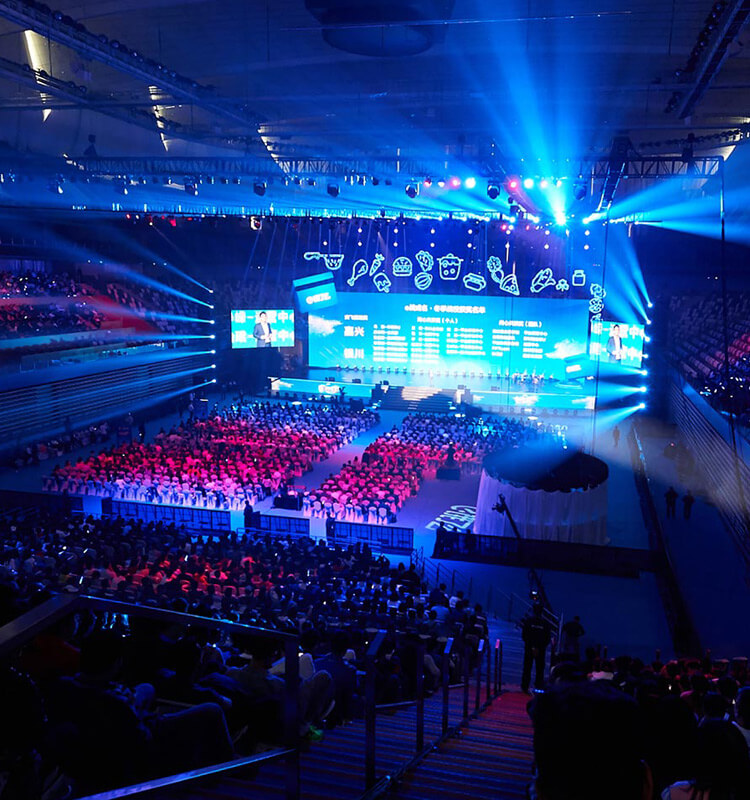

Quatro series by Zonepro is a class leading modular LED display panel for indoor applications. With a wide range of pixel pitches, 1.56mm to 3.9mm, Quatro is well suited as a top spec rental and event panel or can be permanently installed.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team
1000 nits
Light:12kg/pcs
Breaking Points: 1.9 tons
3840Hz

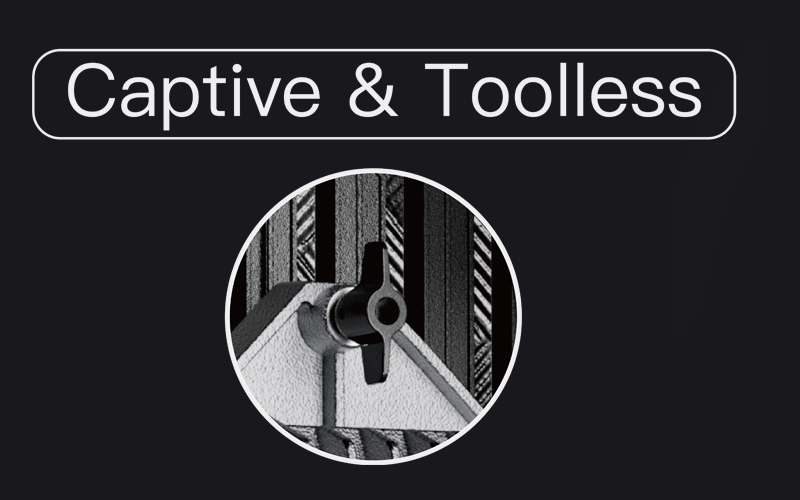

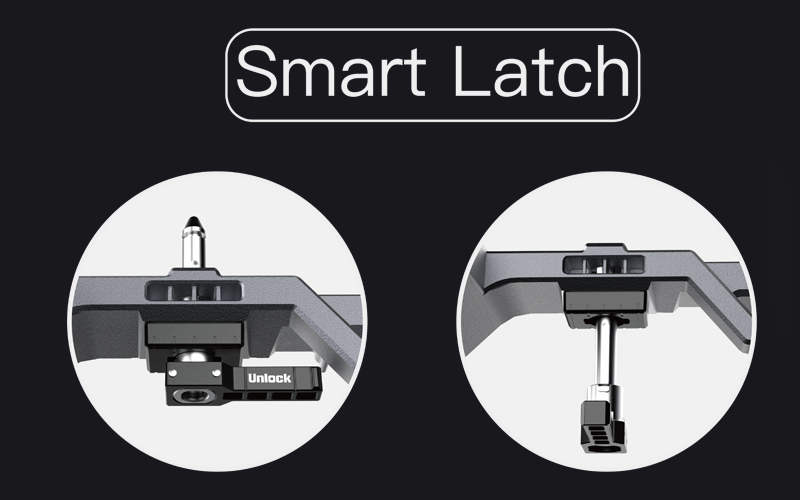

Smart Latch
Modular & Easy Maintenance
Powerful Compatibility
Creative Application
Fly&Stack Bar

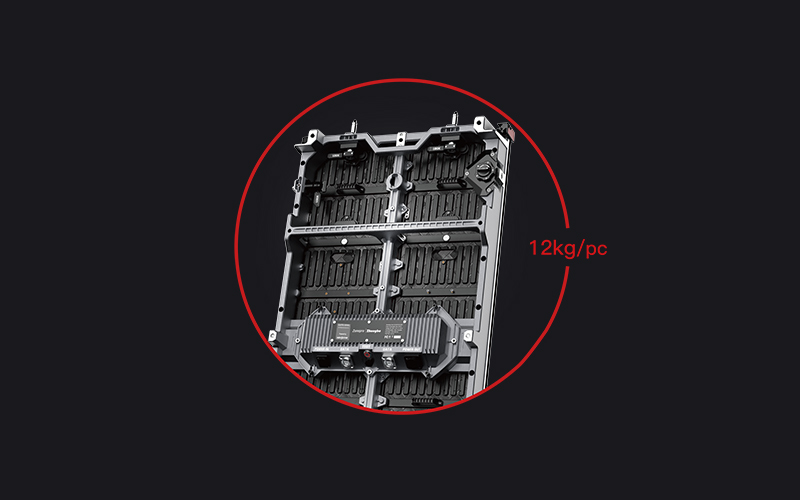

The Magnesium panel stays at a relatively low weight 12kg each. Using a safety factor of 6, 26m of Quatro can safely hang vertically & seamlessly.

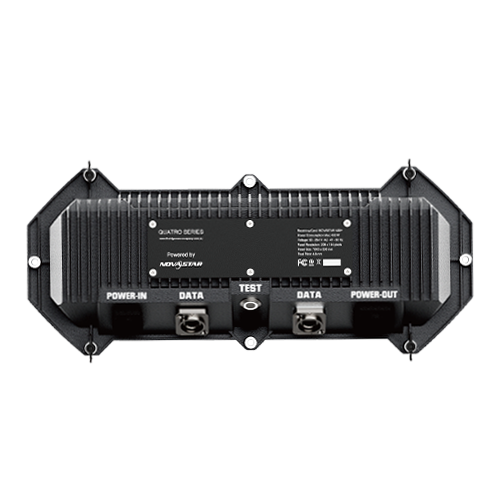

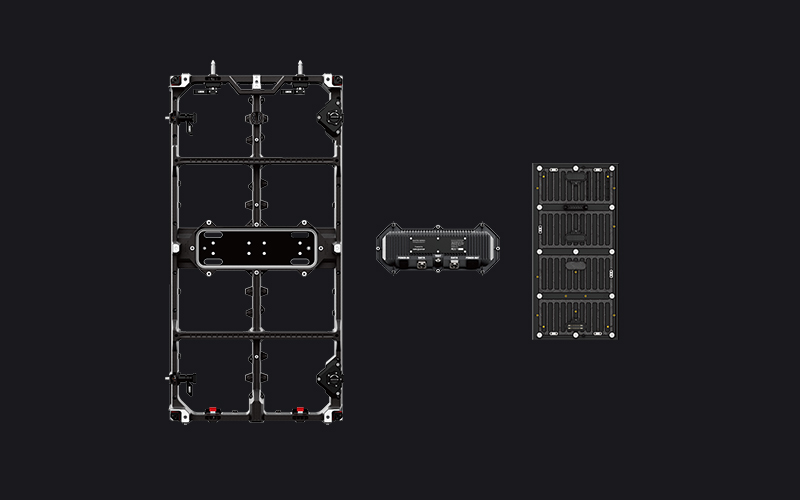

Universal spine

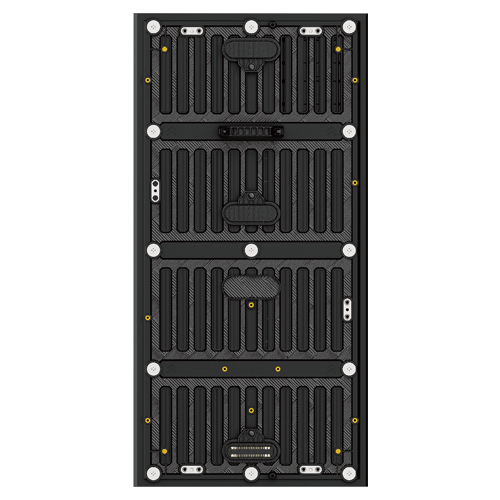

Universal module

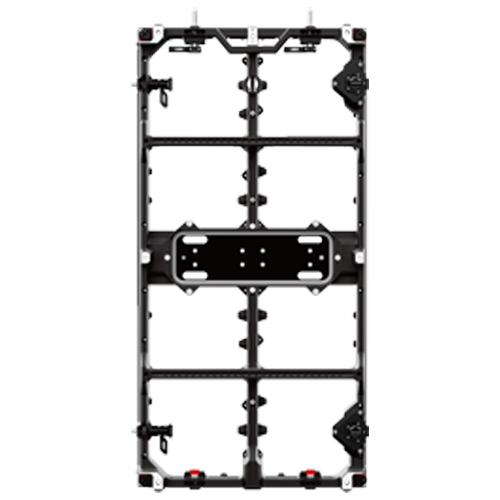

One type chassis for all specs

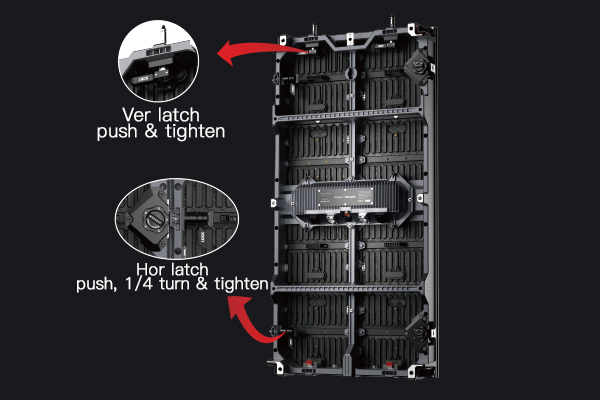

Quatro accommodates fast construction with its big & lightweight panels, smart latch & itself assisted system, Besides, one person is able to complete a full assembling work.

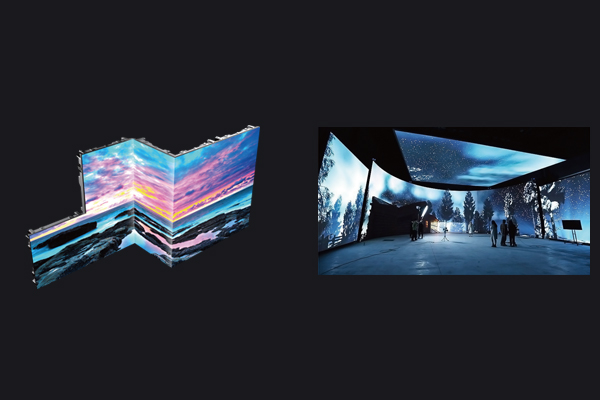

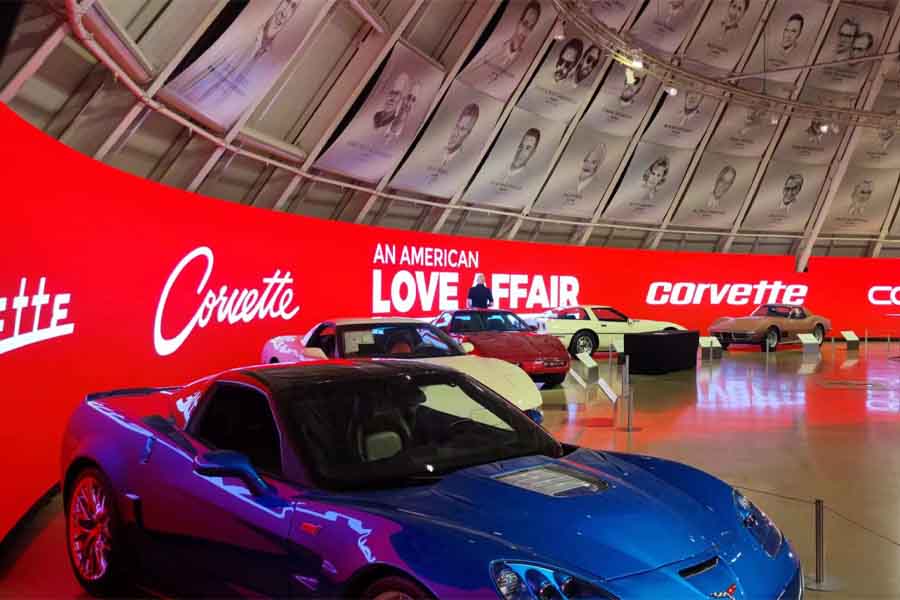

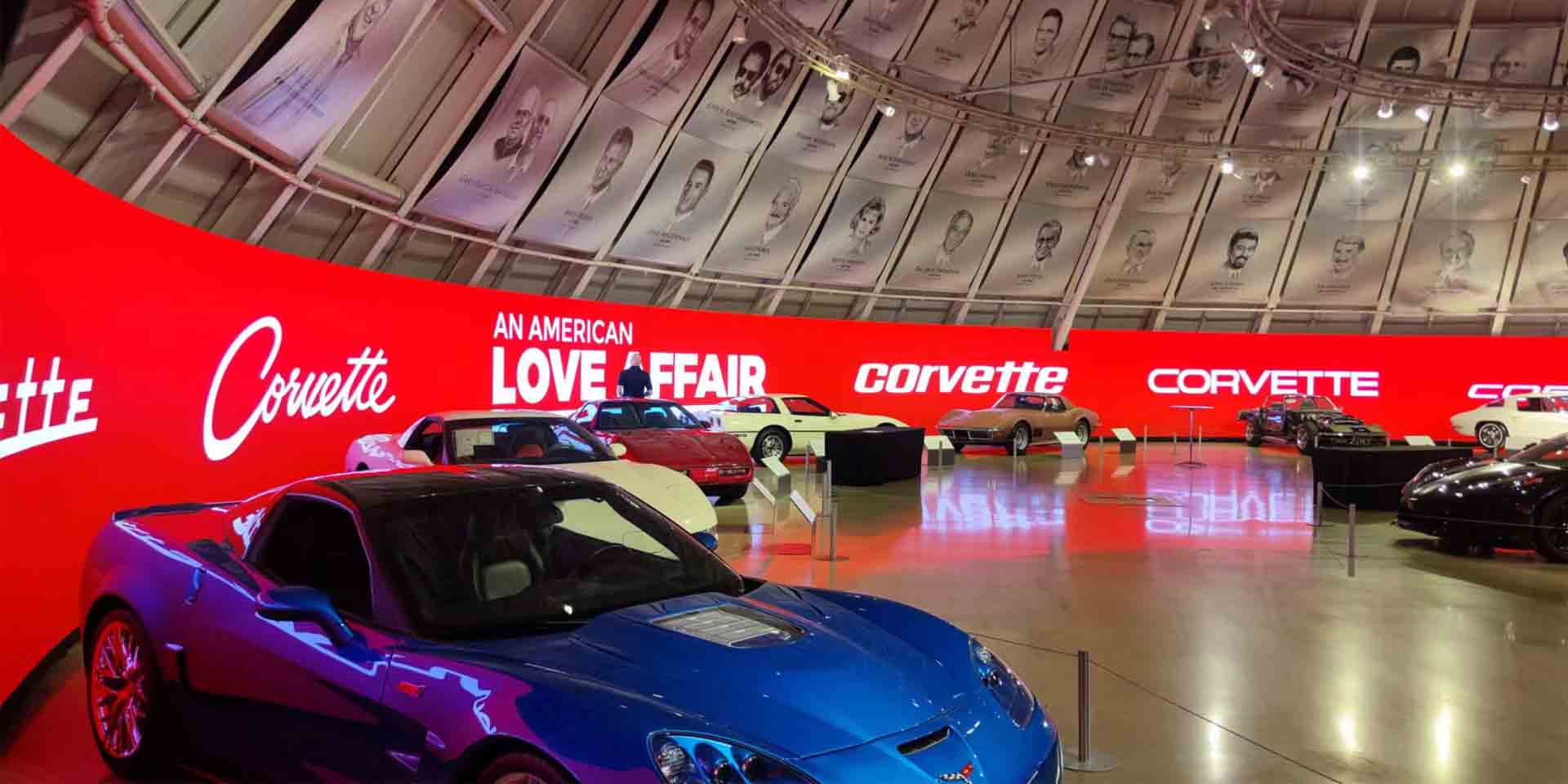

Quatro allows you to realize many creative solutions.In addition to standard designs, Quatro panels can curve, be ceiling mounted, at right angles, let your imagination be the limitation.

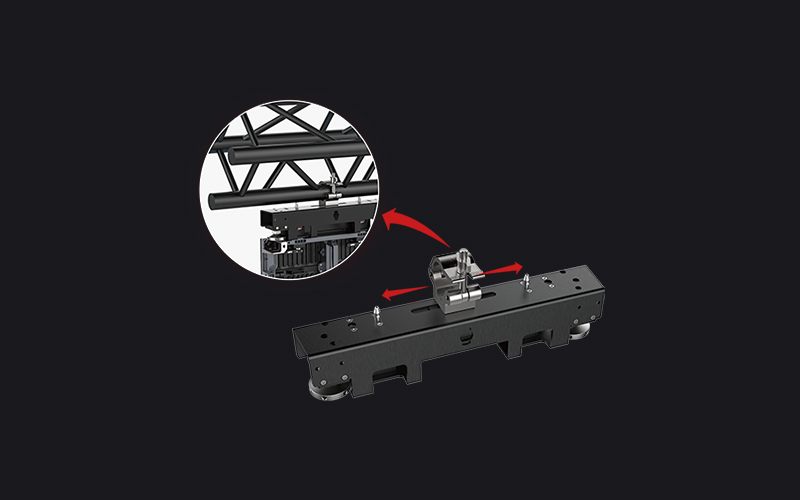

Sideways adjustable rigging clamp assists with truss webbing.

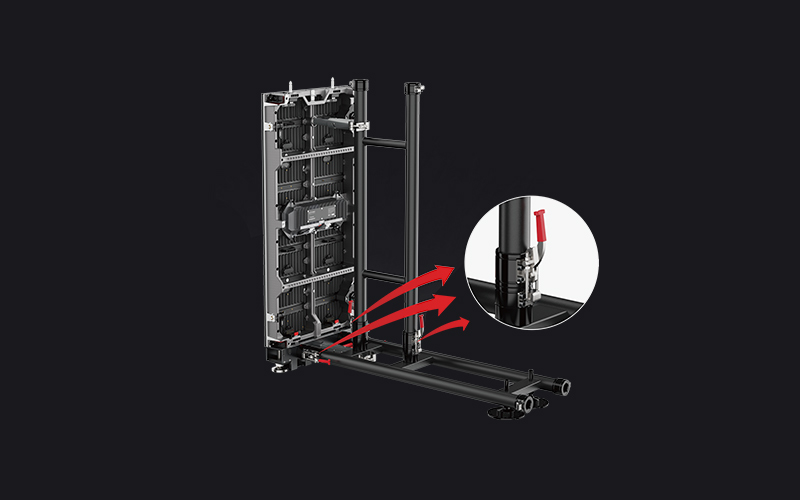

available for ground stack

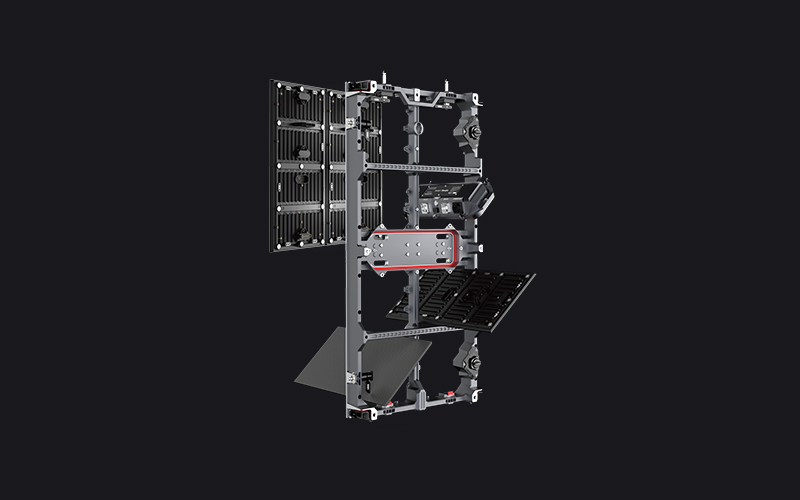

All parts front and rear serviceable.
| Pixel Pitch(mm) | QT1.5 | QT2.6 | QT2.9 | QT3.9 |
| LED Configuration | SMD1212 | SMD1515 | SMD2020 | SMD2020 |
| Pixel Density(pixels/㎡) | 409,600 | 147,456 | 112,896 | 65,536 |
| Brightness(cd/㎡) | ≥800 | ≥1000 | ≥1000 | ≥1000 |
| Module Size(W x H mm) | 250x250 | 250x500 | 250x500 | 250x500 |
| Module Resolution(pixels) | 160x160 | 96×192 | 84x168 | 64x128 |

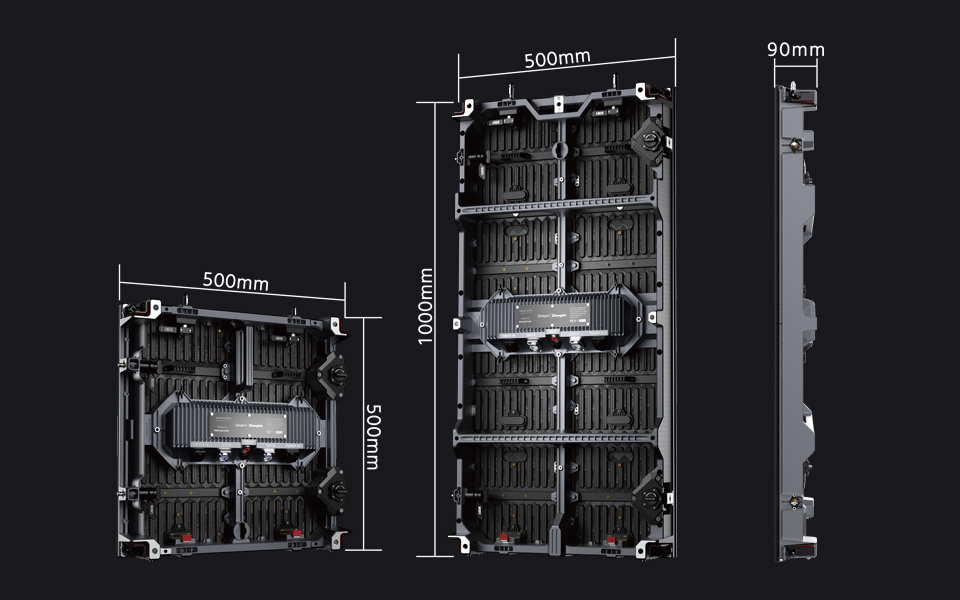

| Panel Size(W x H mm) | 500x500 | 500x1000 | 500x1000 | 500x1000 |
| Panel Resolution(pixels) | 320x320 | 192×384 | 168×336 | 128×256 |
| Panel Weight(kg/pc) | 9kg | 12kg | 12kg | 12kg |
| Cabinet Materials | Diecast Magnesium | |||

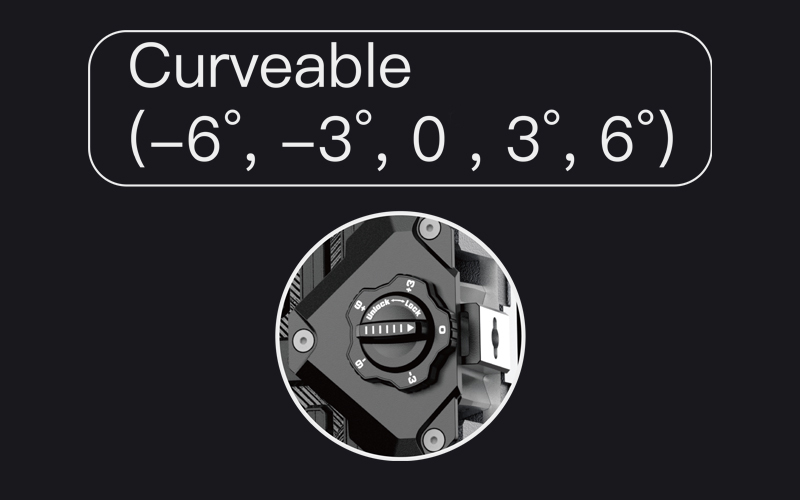

| Curveable | -6°, -3°, 0°,+3°,+6° | |||
| Power Consumption(Max/Avg) W/㎡ | 420/140 | |||
| Refresh Rate | 3840Hz | |||
| Gray Scale | ≤14 bits | |||
| Ingress Progress | IP30 | |||
| Scan Ratio | 1/40 | 1/24 | 1/28 | 1/16 |
