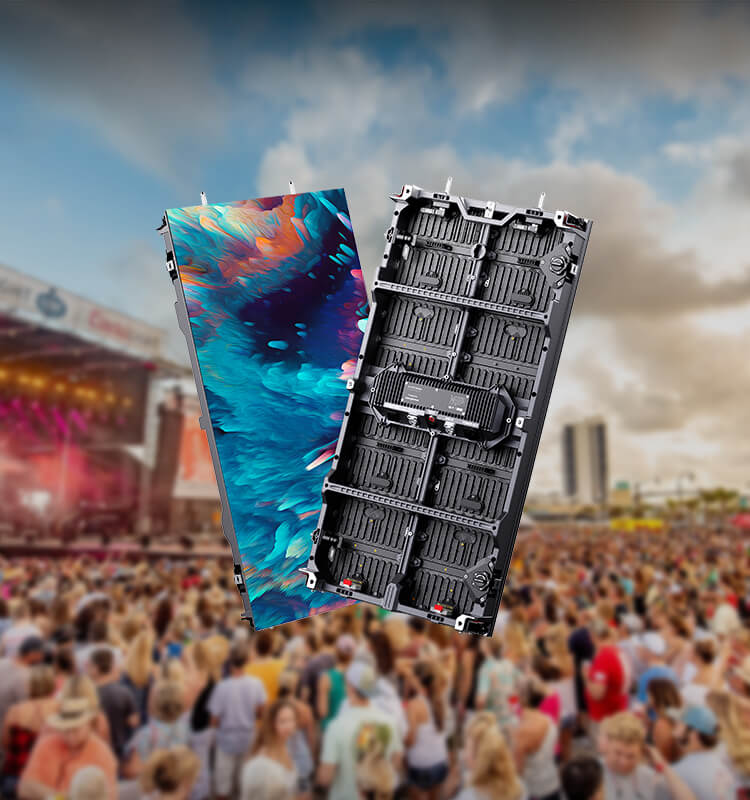

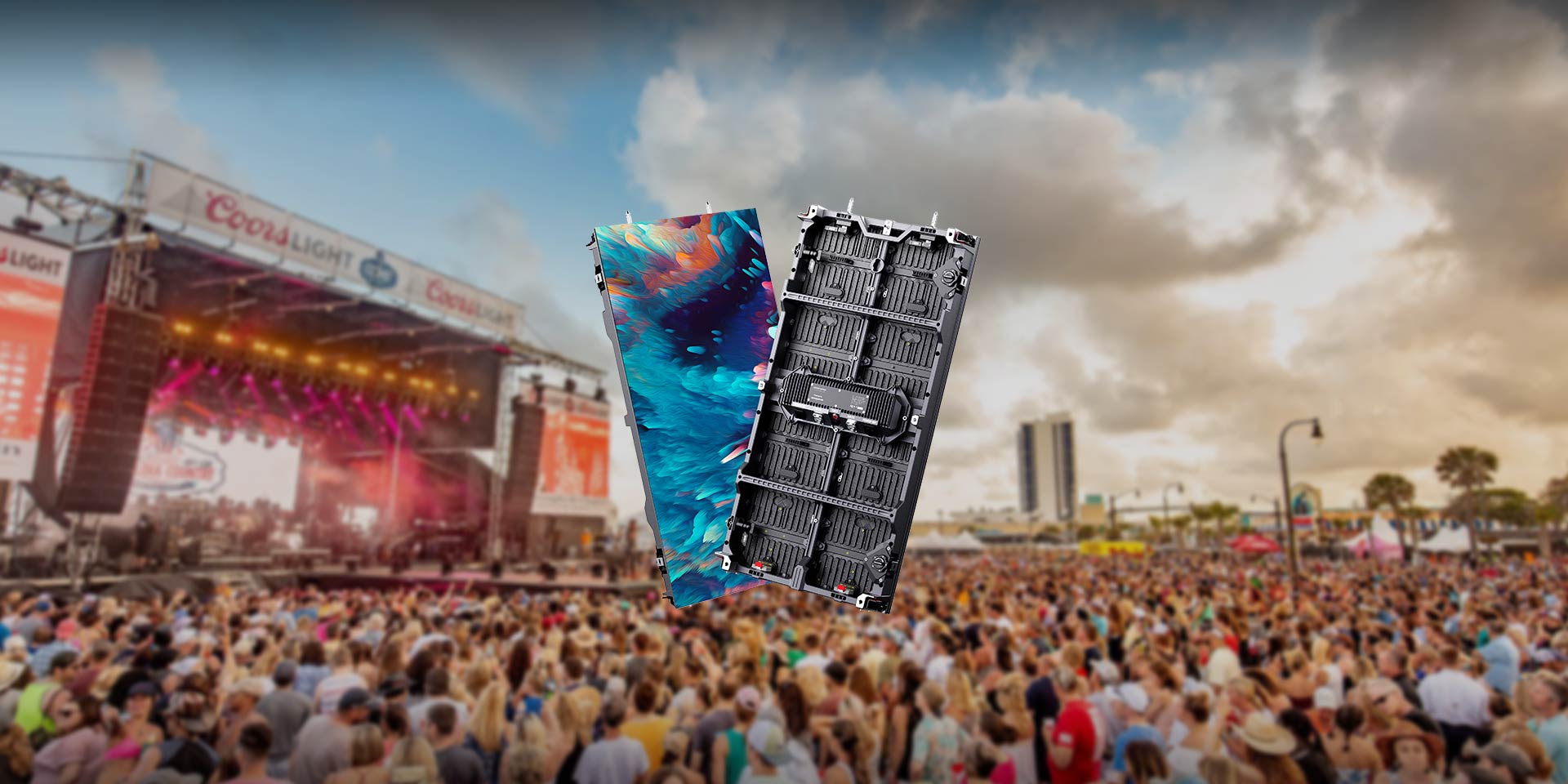

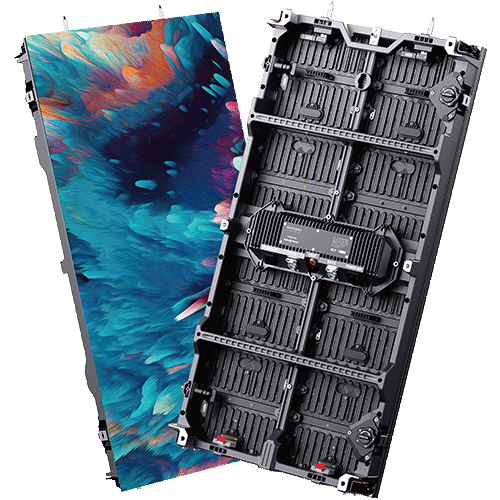

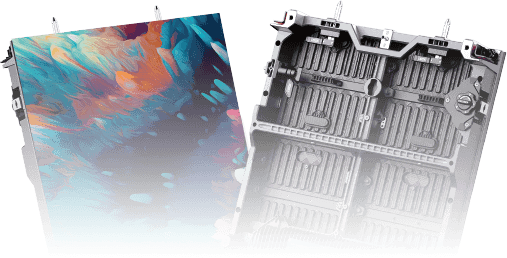

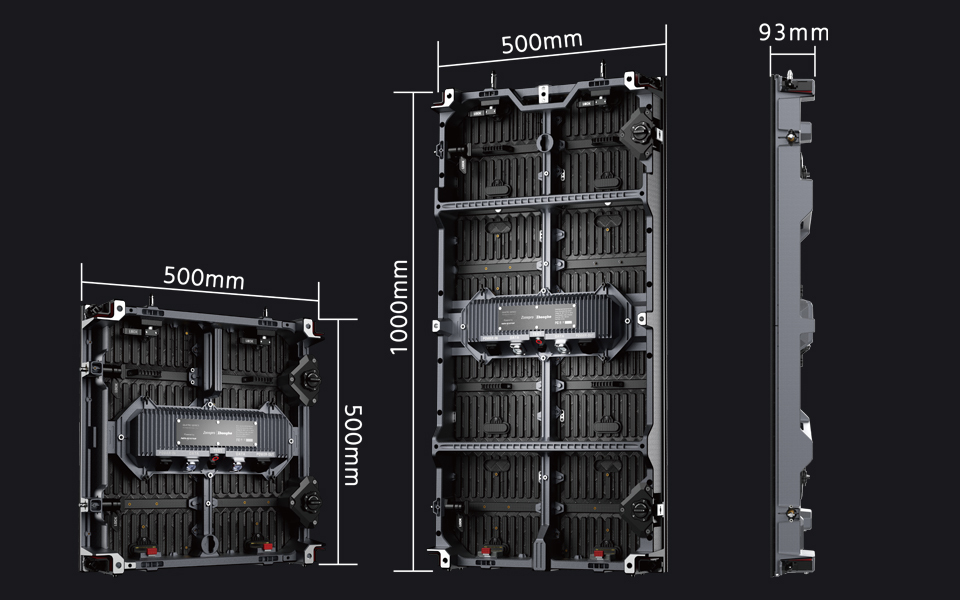

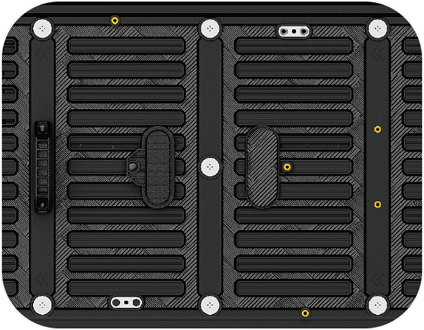

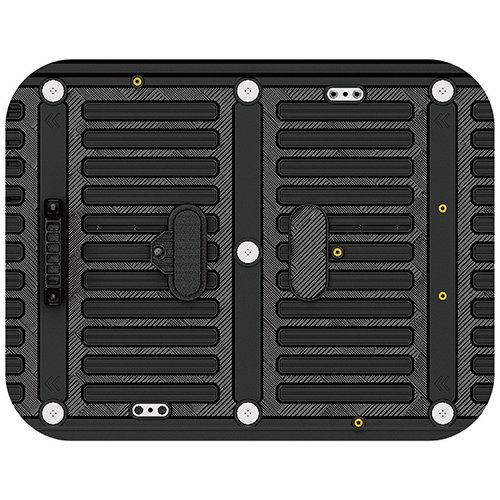

Quatro series by Zonepro is a class leading modular LED display panel with IP and brightness options available for outdoor applications. With a wide range of pixel pitches, 2.9mm to 4.8mm for outdoor use, Quatro is well suited as a top spec rental and event panel or can be permanently installed.The same high strength diecast magnesium chassis is utilized for all applications along with the power and signal back box, allowing Quatro to be fully front and rear serviceable. The Quatro is available in 500mm (w) x 1000 (h) climbable chassis, along with 500mm (w) x 500mm (h) half frames to give you ultimate flexibility in wall shape and size.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team
High contrast
Anti-thermal expansion
Smart latch
IP65 Waterproof
Creative application
Smart Fly&Stack Bar
Excellent cooling
Modular
Quatro uses small & bright LEDs that help with contrast, more importantly, long louvers on mask that shade LEDs from environmental light especially sunlight mainly contribute to contrast.
The design on module shell helps mitigate thermal expansion of the module to a near non-existent factor.

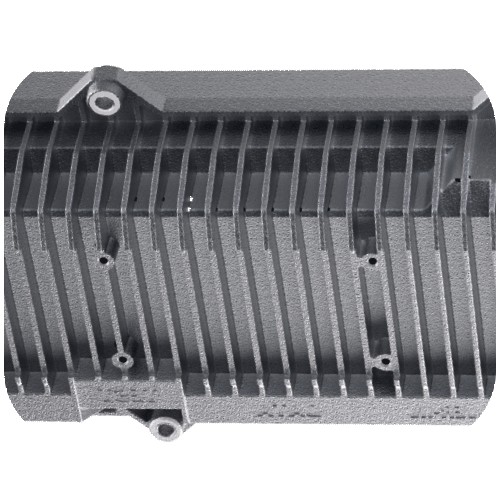

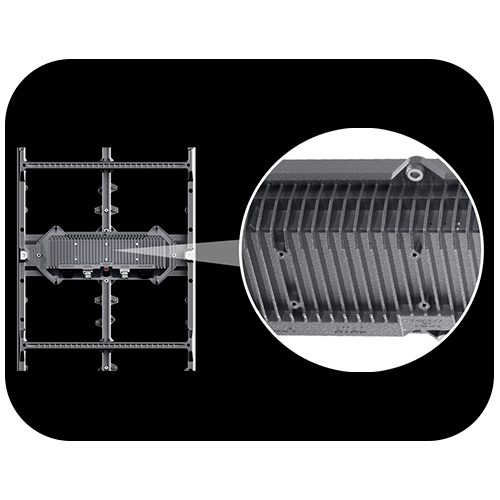

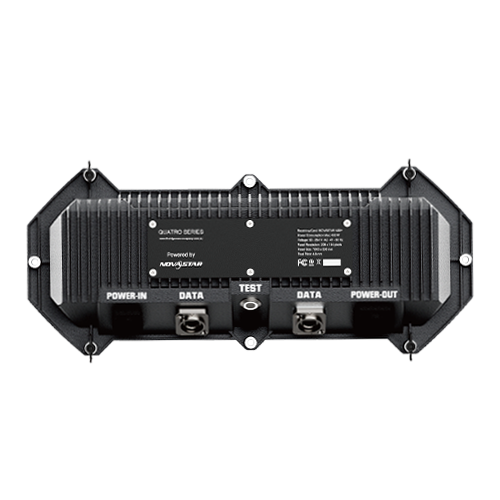

The themal property of the Spine (the house is comprised of aluminum enclosure with large cooling area & a whole chassis) rapidly dissipates heat, reducing power consumption and improving component operations. Quatro panels will not discolour on full white even under extreme conditions.
Quatro’s diecast aluminium chassis has been strength tested to a staggering 2.2 tonnes. Using a safety factor of 8, 19m of Quatro can safely hang verti- cally & seamlessly.
Rated IP65, front & back, Quatro repels the harshest of wet conditions.

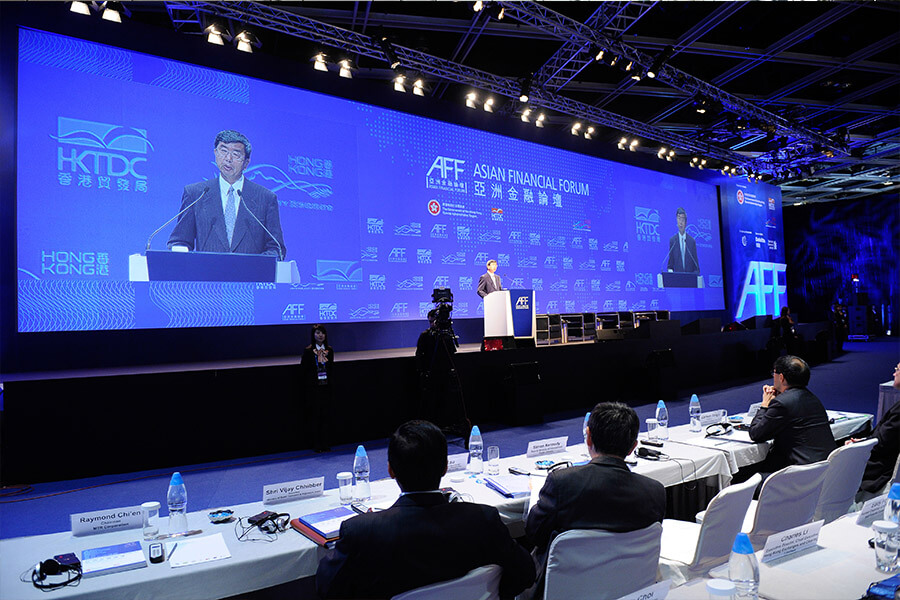

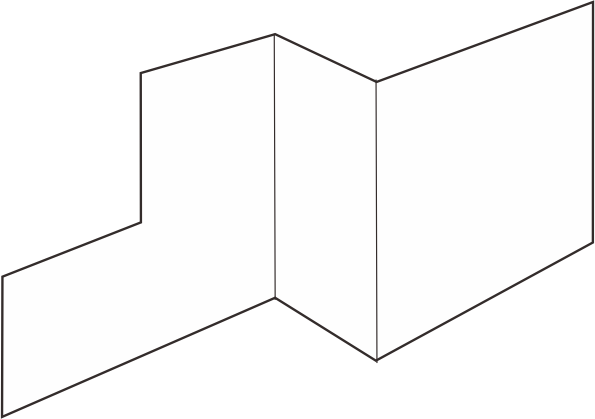

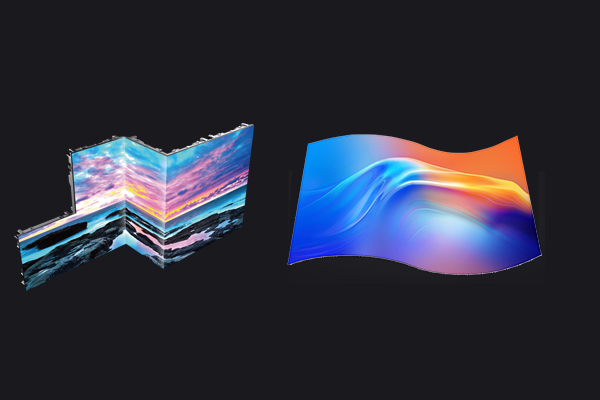

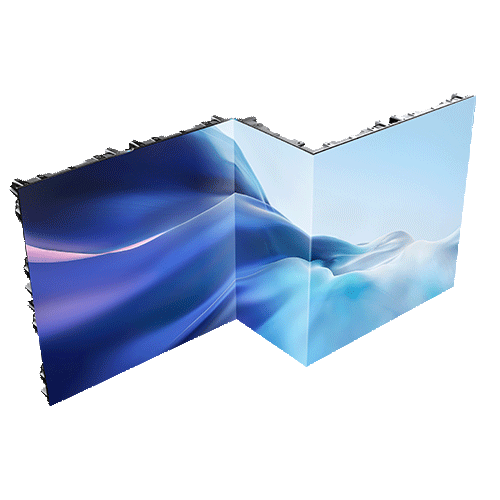

Quatro allows you to realize many creative solutions.In addition to standard designs, Quatro panels can curve,be ceiling mounted, at right angles, let your imagination be the limitation.

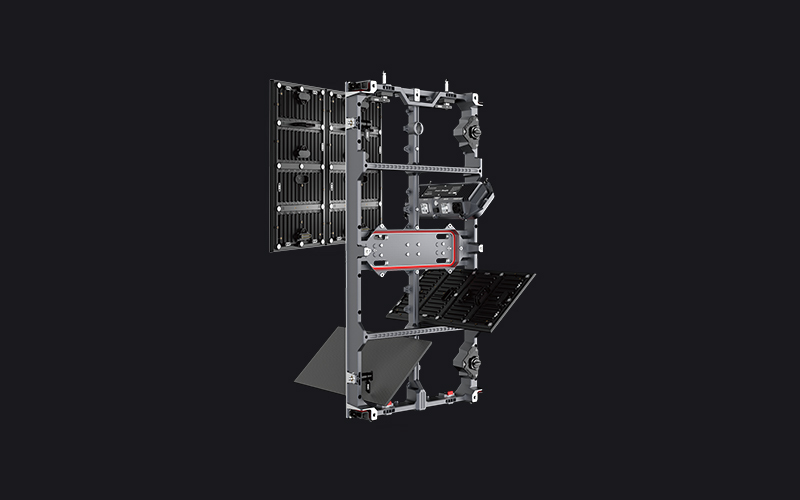

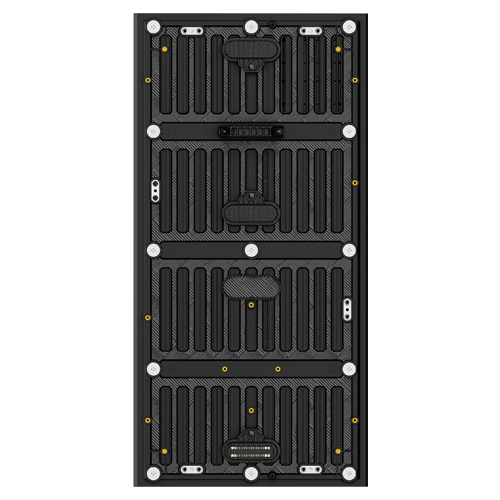

All parts front and rear serviceable.

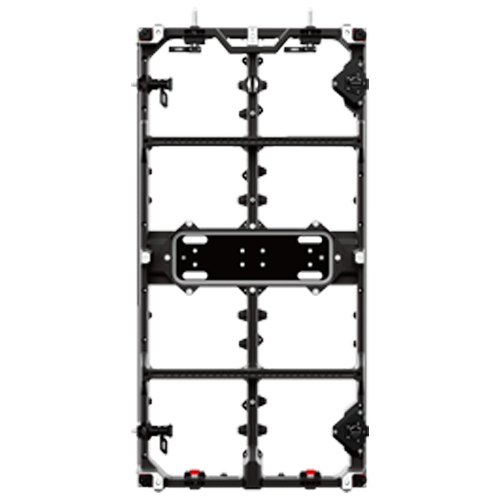

Universal spine
Universal module
One type chassis for all specs

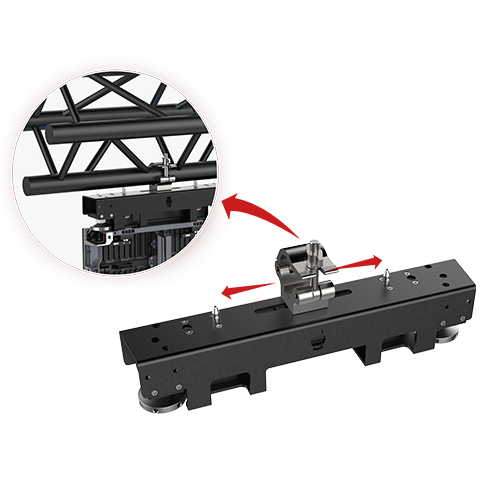

Sideways adjustable rigging clamp assists with truss webbing.
Available for ground stack
| Pixel Pitch(mm) | QT2.6 | QT2.9 | QT3.9 | QT4.8 |
| LED Configuration | SMD1415 | SMD1415 | SMD1415 | SMD1921 |
| Pixel Density(pixels/㎡) | 147,456 | 112,896 | 65,536 | 43,264 |
| Brightness(cd/㎡) | 4,500 | 5,500 | 5,500 | 5,500 |
| Module Size(W x H mm) | 250x250 | 250x500 | 250x500 | 250x500 |
| Module Resolution(pixels) | 96x96 | 84x168 | 64x128 | 52x104 |
| Panel Size(W x H mm) | 500x500 | 500x1000 | 500x1000 | 500x1000 |
| Panel Resolution(pixels) | 192x192 | 168x336 | 128x256 | 104x208 |
| Panel Weight(kg/pc) | 10kg | 14.5kg | 14.5kg | 14.5kg |
| Cabinet Materials | Diecast Aluminum | |||
| Curveable | -6°, -3°, 0°,+3°,+6° | |||
| Power Consumption(Max/Avg) W/㎡ | 800/250 | 800/250 | 800/250 | 800/250 |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Gray Scale | ≤14 bits | ≤14 bits | ≤14 bits | ≤14 bits |
| Ingress Progress | IP65 | IP65 | IP65 | IP65 |
| Scan Ratio | 1/16 | 1/14 | 1/8 | 1/8 |
