wallPad is a lightweight & wallmount fine pitch product, which will revolutionize the indoor LED experience, and introduce many new customers to LED activations.wallPad has allows for extensive flexibility. wallPad’s precise chassis assembly provides a seamless and consistent display, and the wallPad is less than 44mm deep, overall providing an exceptional finish.
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.

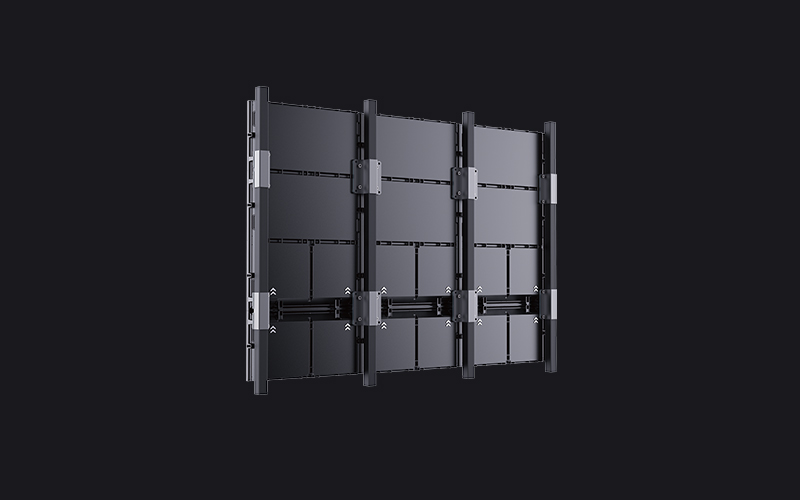

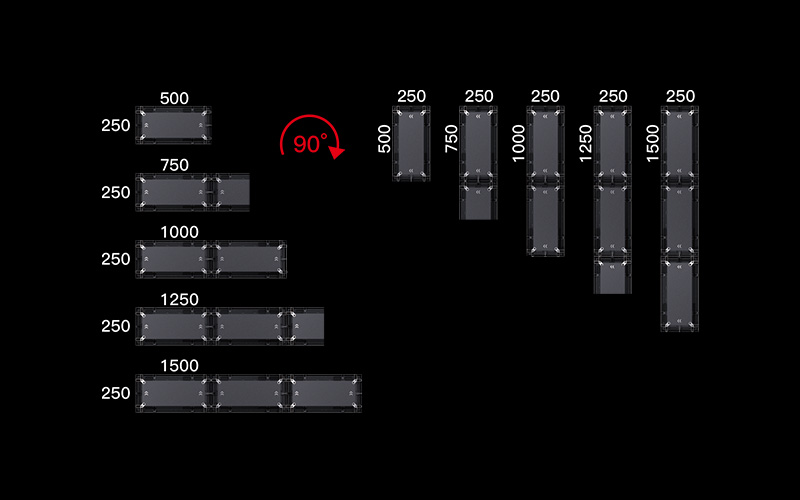

wallPad is able to fit width & height of the wall separately by times of 250mm

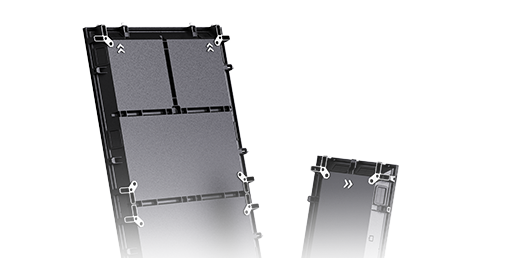

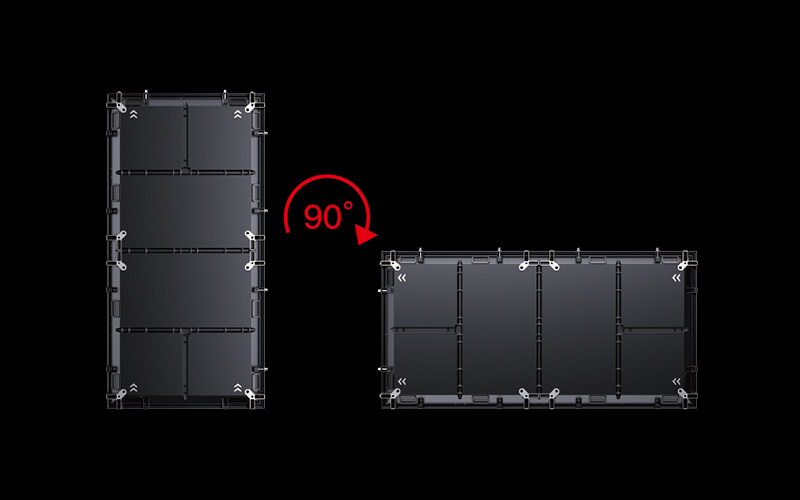

The main panel 500x1000mm that can turn 90° while modules (all remained parts) stay same solves most of the required sizes on screen.
The assisted panel is able to extend on times of 250mm and to turn 90° (modules, hubs... stay same), super flexible to fit the remaining 250mm in a screen.

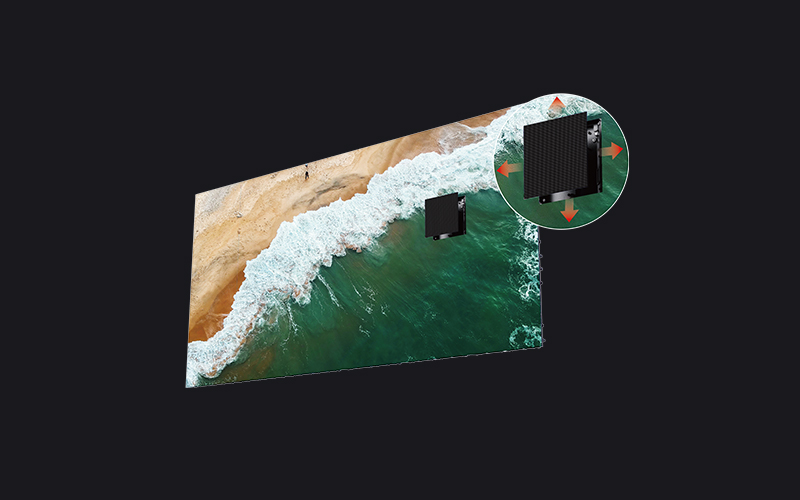

wallPad allows each module to be slightly adjusted left, right, up or down, to have a seamless joint between modules.

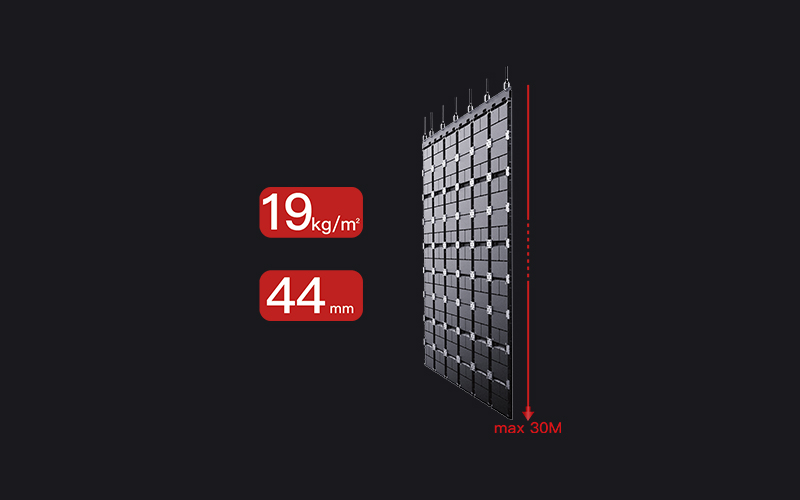

30m of wallPad (without extra bracket) can safely hang vertically and seamlessly.

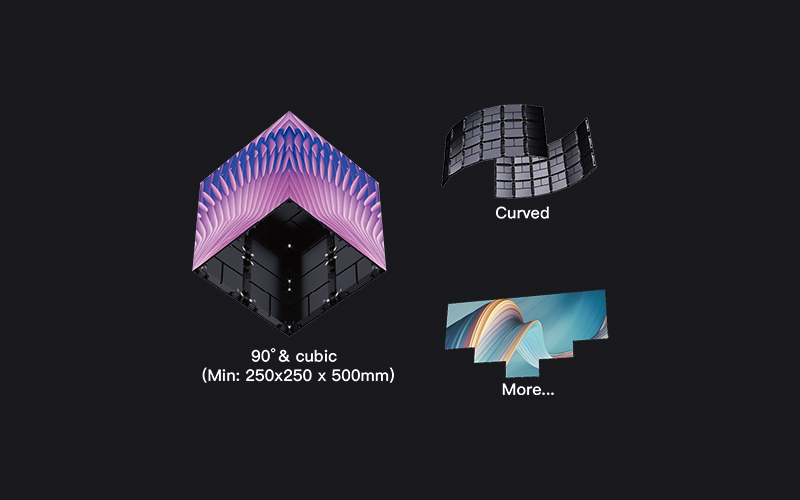

wallpad allows you to realize many creative solutions. In addition to standard designs, WallPad panels can curve, at right angles and more,let your imagination be the limitation.

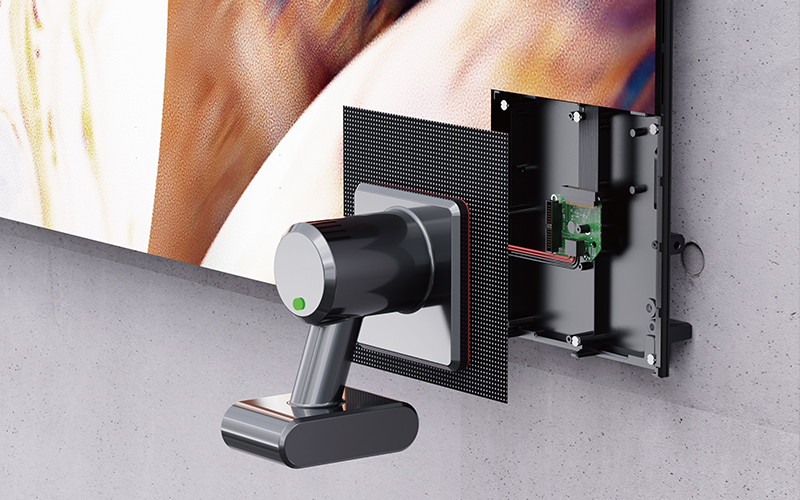

All parts are front accessible

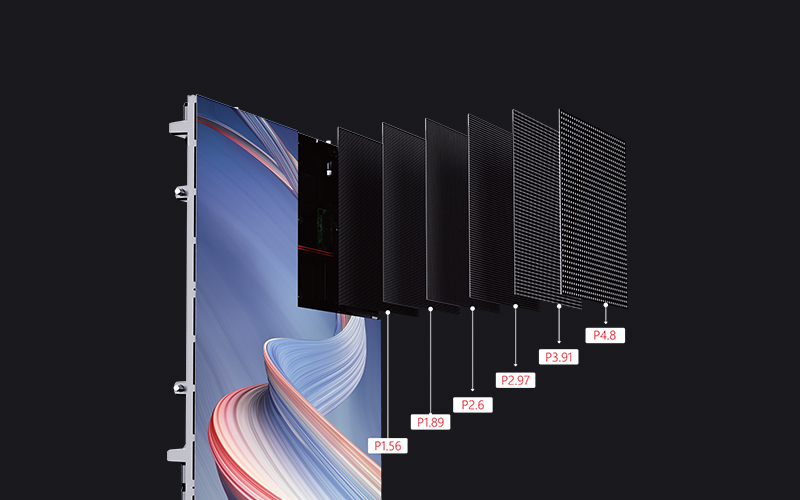

One chassis with same internal composition for all available pitches.All parts including module, powersupply,receiving card, hub, cables etc. are interchangeable, which eases the stockings on finished panels.
This feature will help save most of the cost when users upgrade or retrofit the screen, what it needs is to change the modules and the spent will be around 30% of the total.

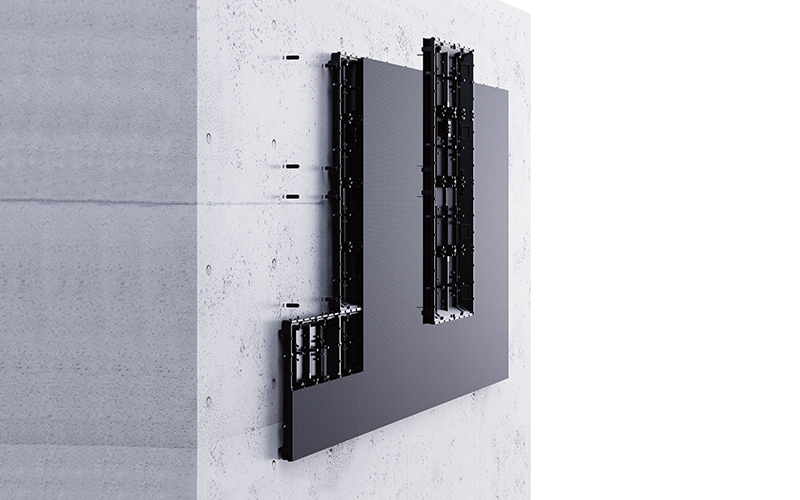

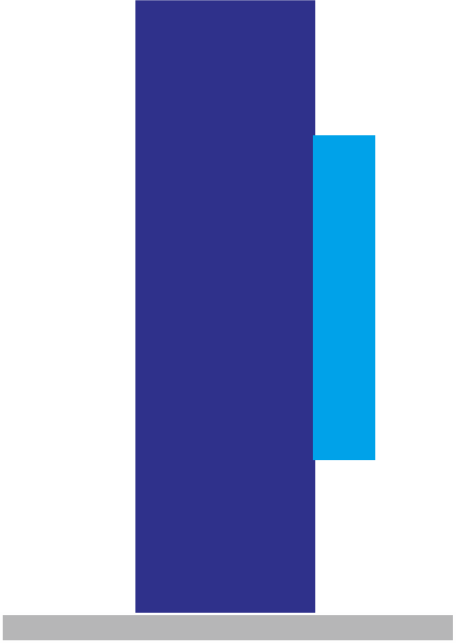

wallPad can be directly mounted against wall when the wall is smooth and flat and screen size is not big,less than 20m for example.
|Pixel Pitch (mm)||wP1.56||wP1.89||wP2.5||wP2.6||wP2.9||wP3.9||wP4.8|
|Pixel Density (pixels/㎡)||409,600||278,784||160,000||147,456||112,896||65,536||43,264|

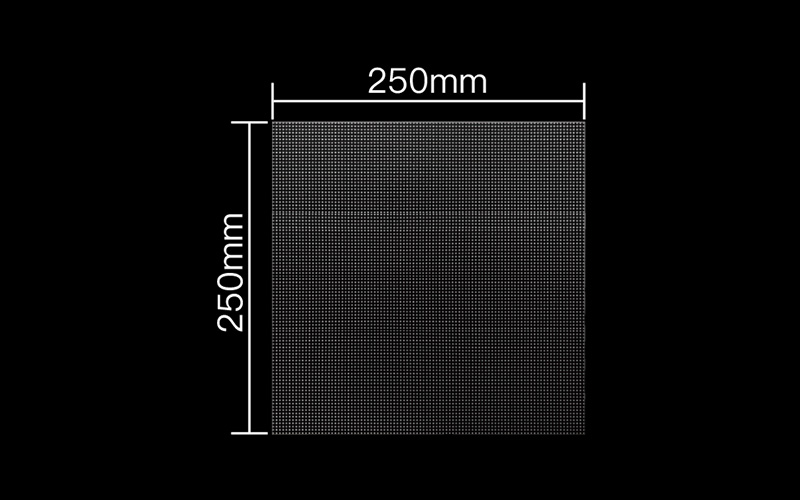

|Module Size (W x H mm)||250x250|
|Panel Size (W x H mm)||250X|
|Panel Weight (kg/㎡)||≥19kg|
|Power Consum (W/㎡)||420/140|

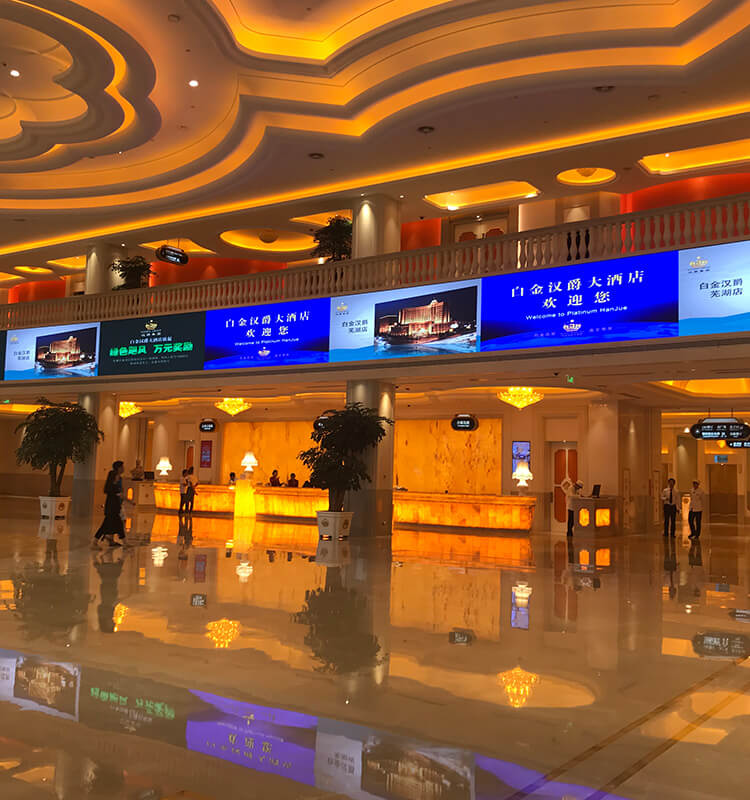

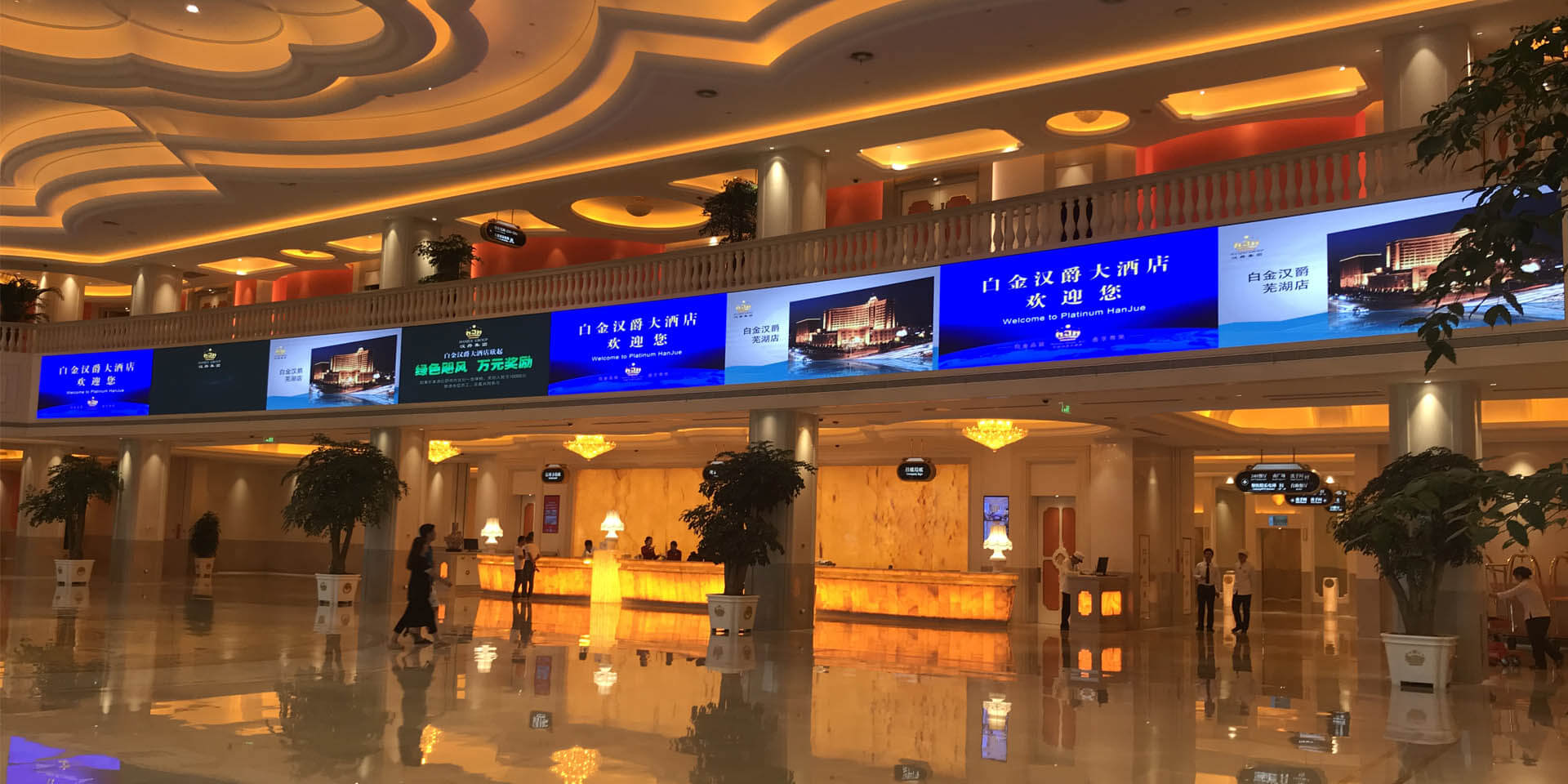

1250㎡ P1.8/3/4 indoor led screen in Shanghai Platinum Hanjue Hotel
This is an indoor P1.2 fine pixel pitch led screen by zonepro led
This is a indoor led video wall project .We use P1.8 fine pixel pitch led screen and the screen size is 88㎡.This screen is mainly used to display commercial advertisements, information, etc.
